Pfaff 1193 - Inserting the Needle (on the PFAFF 1194)

Rüsten
9 - 2
9.02 Inserting the needles in the PFAFF 1194
Turn the machine off!
Danger of injury if the machine
is started accidentally!
Use only system
134134
134134
134 needles.
● Raise the roller presser and swing it out.
● Raise the needle bar as far as possible.
● Loosen screws 1 and 2 and insert the
needles 3 as far as possible. (The long
needle groove of the left needle must be
facing right and that of the right needle
must be facing left).
● Tighten screws 1 and 2.

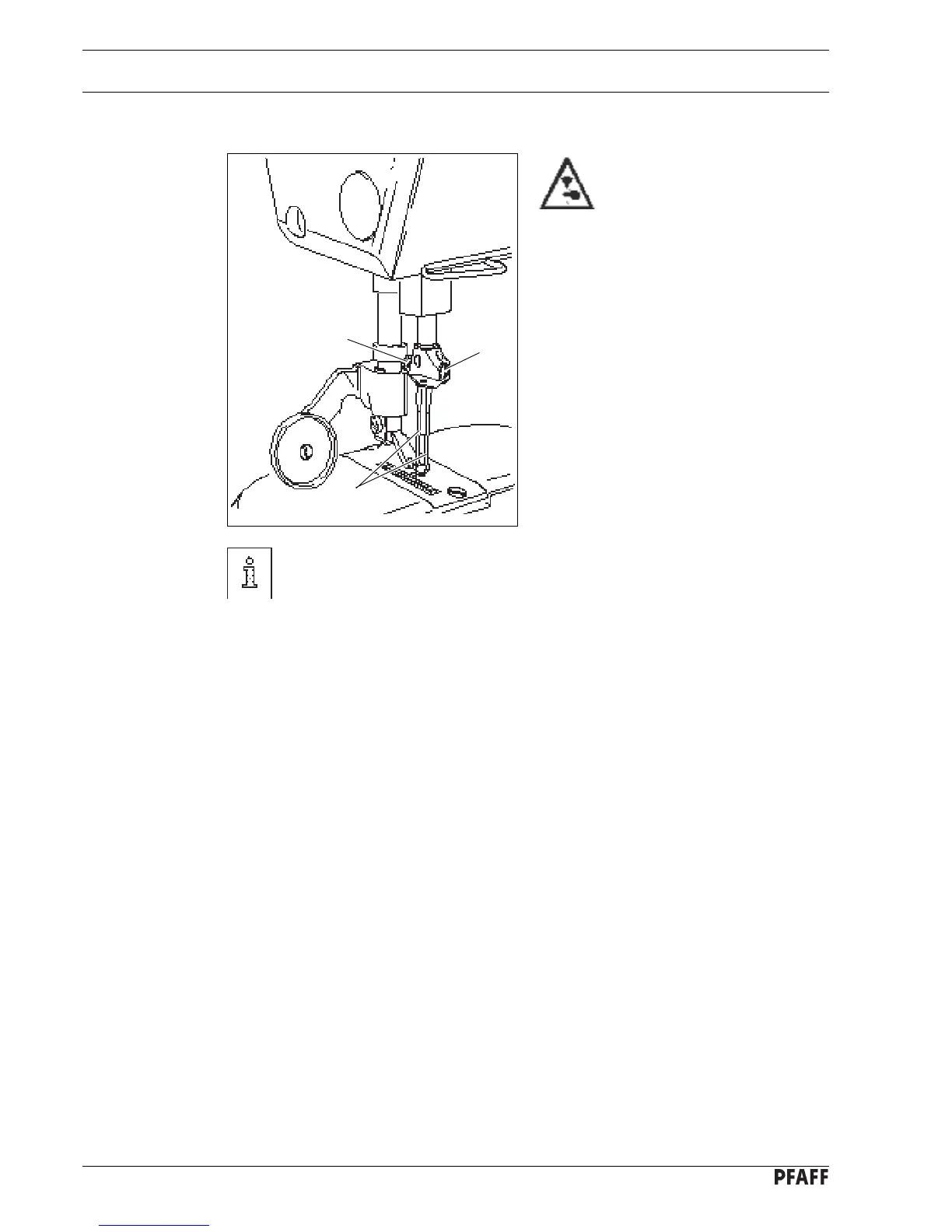

Fig. 9 - 02
The selection of the needle depends on the machine model and the materials
and threads being used (see Chapter 3 Specifications).
