Pfaff 1193 - Feed Dog Height

Adjustment
11 - 6
11.08 Feed dog height
Requirement
With the switch length set at "0" and the needle bar at its TDC, the feed dog should
1. be positioned in the centre of the needle plate cutout and
2. protrude 0.8 - 1.0 mm from the needle plate.

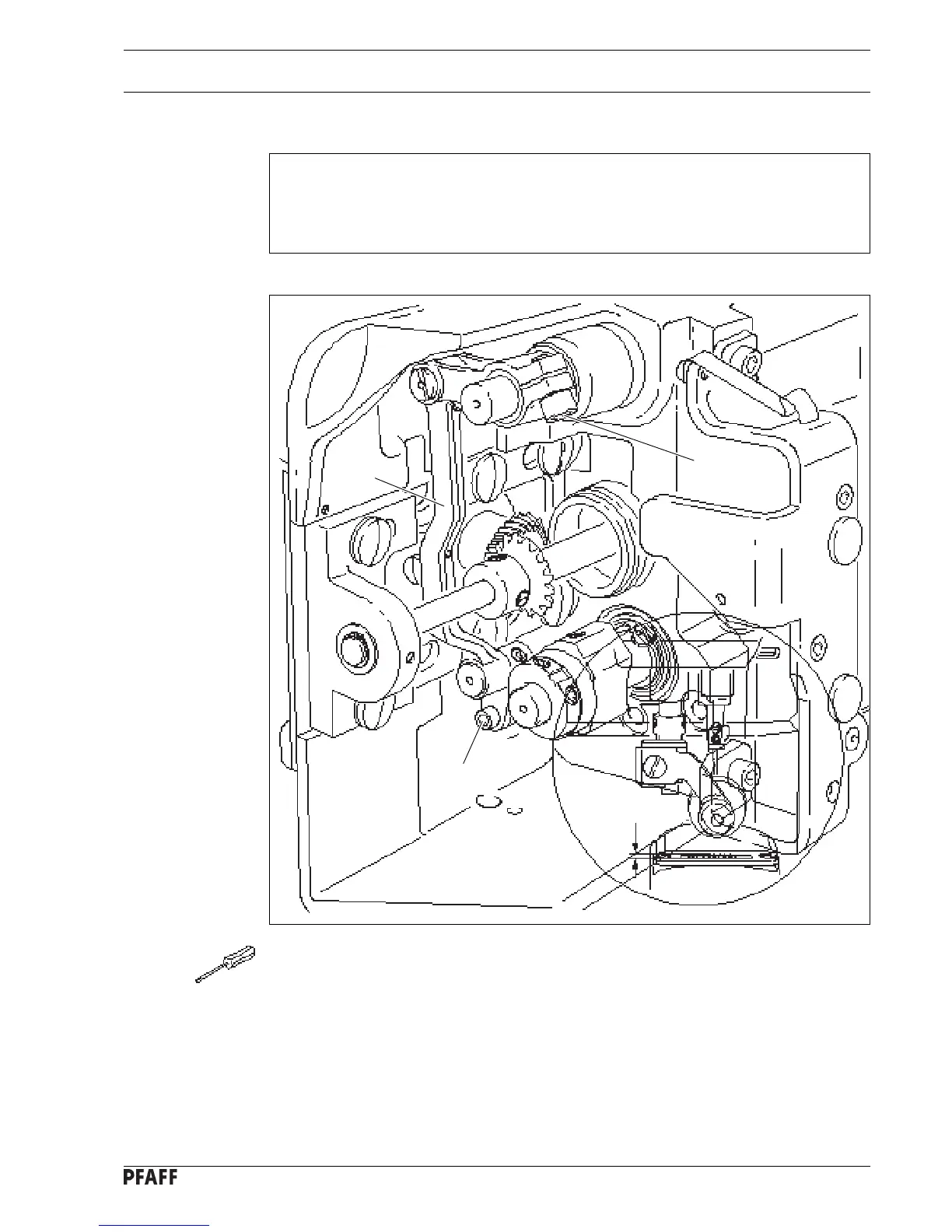

Fig. 11 - 05
● Set the stitch length at "0" and bring the needle bar to its TDC.
● Raise the roller presser.
● Adjust the feed bar 1 (screw 2) in accordance with
requirement 1requirement 1
requirement 1requirement 1
requirement 1.
● Adjust the feed bar 1 (screw 3) in accordance with
requirement 2requirement 2
requirement 2requirement 2
requirement 2.
1
2
3
0,8 - 1,0 mm
