Pfaff 1193 - Knee Lever Stop

Adjustment
11 - 17
11.19 Knee lever stop
Requirement
When the knee lever has been moved as far as possible, the roller presser should rise
approximately 9 mm above the needle plate, and lever 3 should swing down
automatically.
● Schraube 1 ( Mutter 2 ) entsprechend der Requirement verdrehen.

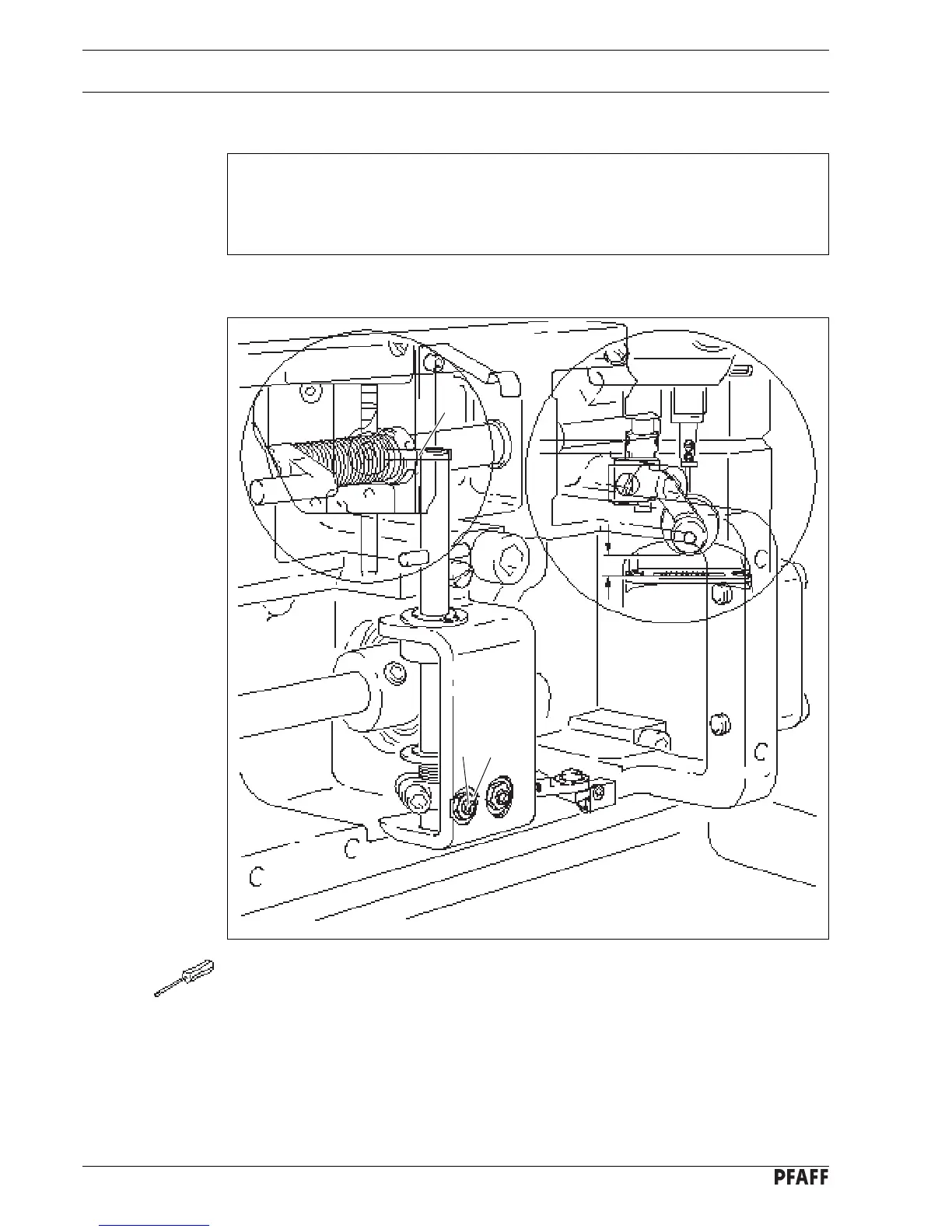

Fig. 11 - 16
1
3
2
9 mm
