Pfaff 1193 - Fitting the Lower V-Belt Guard; Fitting the Reel Stand

Installation and commissioning
8 - 3

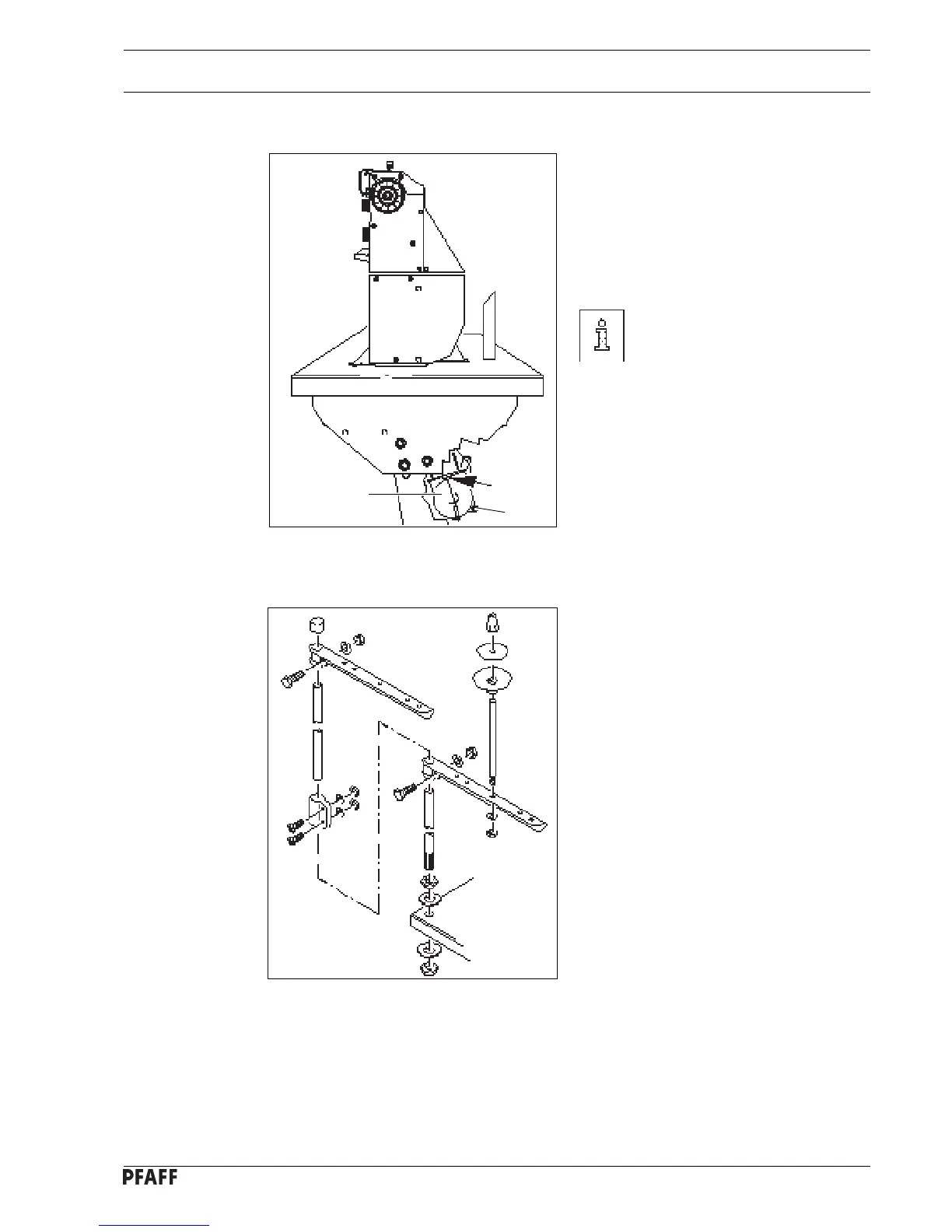

8.01.04 Fitting the lower V-belt guard
● Align belt guard 1 in such a way that both
the motor pulley and the V-belt run
freely.
● Tighten screws 2.
Fig. 8-04 shows an illustration
of a Quick motor. If another
motor is used, proceed as
described in the motor’s
instruction manual.
Fig. 8 - 04
8.01.05 Fitting the reel stand
● Fit the reel stand as shown in Fig. 8-05.
● Insert reel stand in the table-top hole and
fasten it with the included nuts.
Fig. 8 - 05
2
2
1
