Adjustment
11 - 8
11.10 Centering the needle in the needle hole
Requirement
The needle should enter the needle hole exactly in the centre.
● Position the needle directly above the needle hole.
● Loosen screws 1, 2 and 3.
● Position the needle bar frame 4 in accordance with the
requirementrequirement
requirementrequirement
requirement.
● Tighten screw 2 and slightly tighten screw 3.
● By tightening screw 1 draw the inner guide stud towards the eye of the needle bar frame 4.
● Turn the balance wheel a few times to avoid a distortion of the needle bar frame 4.
● Tighten screw 3.

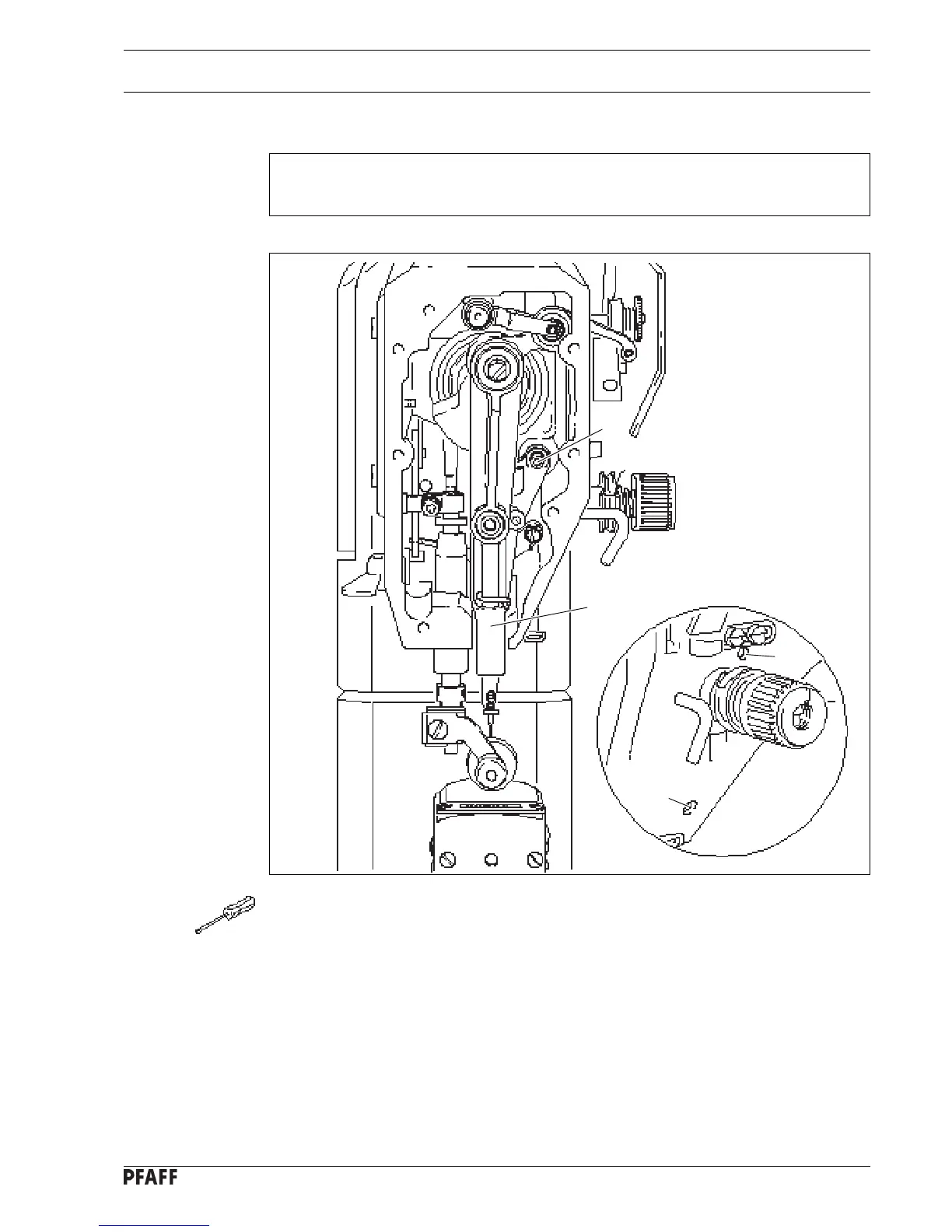

Fig. 11 - 07
1
4
3
2
