Adjustment
11 - 7
11.09 Driving motion of the feed dog
Requirement
With the longest stitch set and the needle bar positioned at TDC, the feed dog should not
move when the reverse-feed lever 3 is operated.
1
2

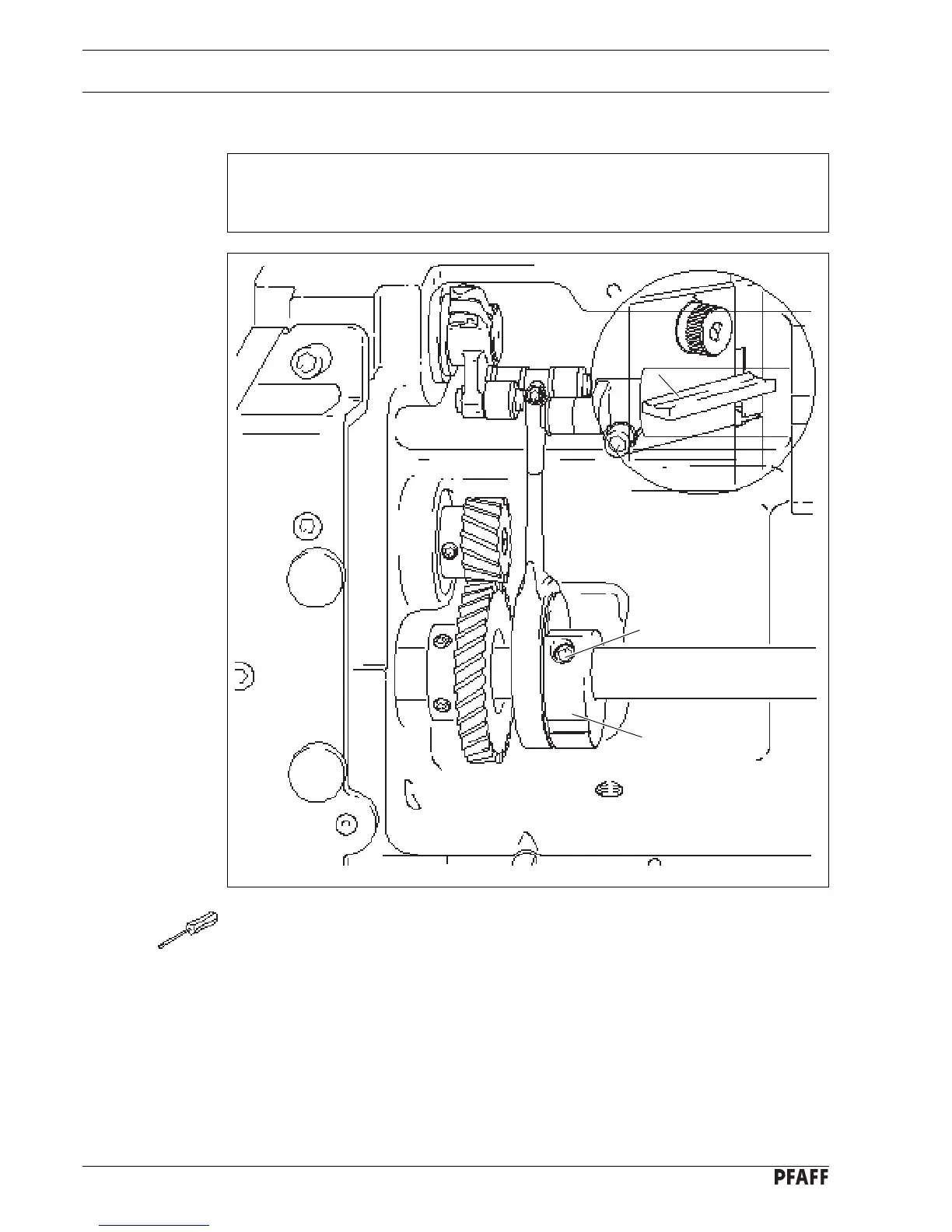

Fig. 11 - 06
● Set the longest stitch.
● Bring the needle bar to its TDC.
● Turn eccentric 1 (slightly loosen screws 2) in accordance with the requirement, without
moving it sideways.
3
