Operating Controls
17

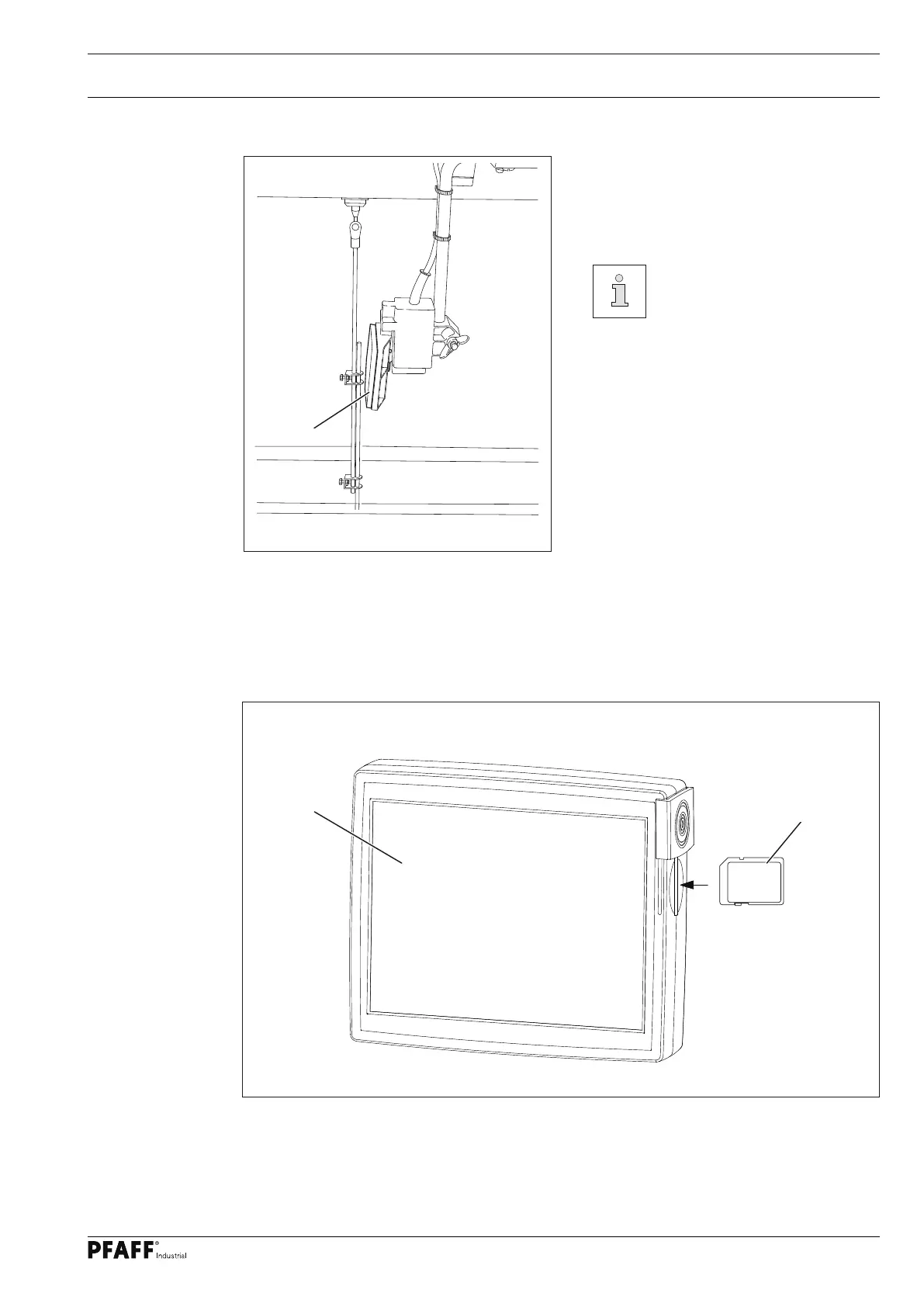

7.05 Knee switch
O When the knee switch 1 is operated,
one stitch is sewn with a reduced stitch
length (standard).
The value for the reduced stitch
length is set with parameter
"835", see chapter 11.04
Parameter settings.
O If the edge guide connector is inserted
into the bushing X47, the edge guide can
be moved back using the knee switch.
Fig. 7 - 05
1
Fig. 7 - 06
2 GB
max.
7.06 Control panel
The current operating statuses are indicated on the control panel 1. The machine
is operated with constant dialogue between the control unit and the operator; different
pictograms and / or texts are displayed for this purpose according to the operating status of
the machine. Pictograms or texts with a border represent
1
2
