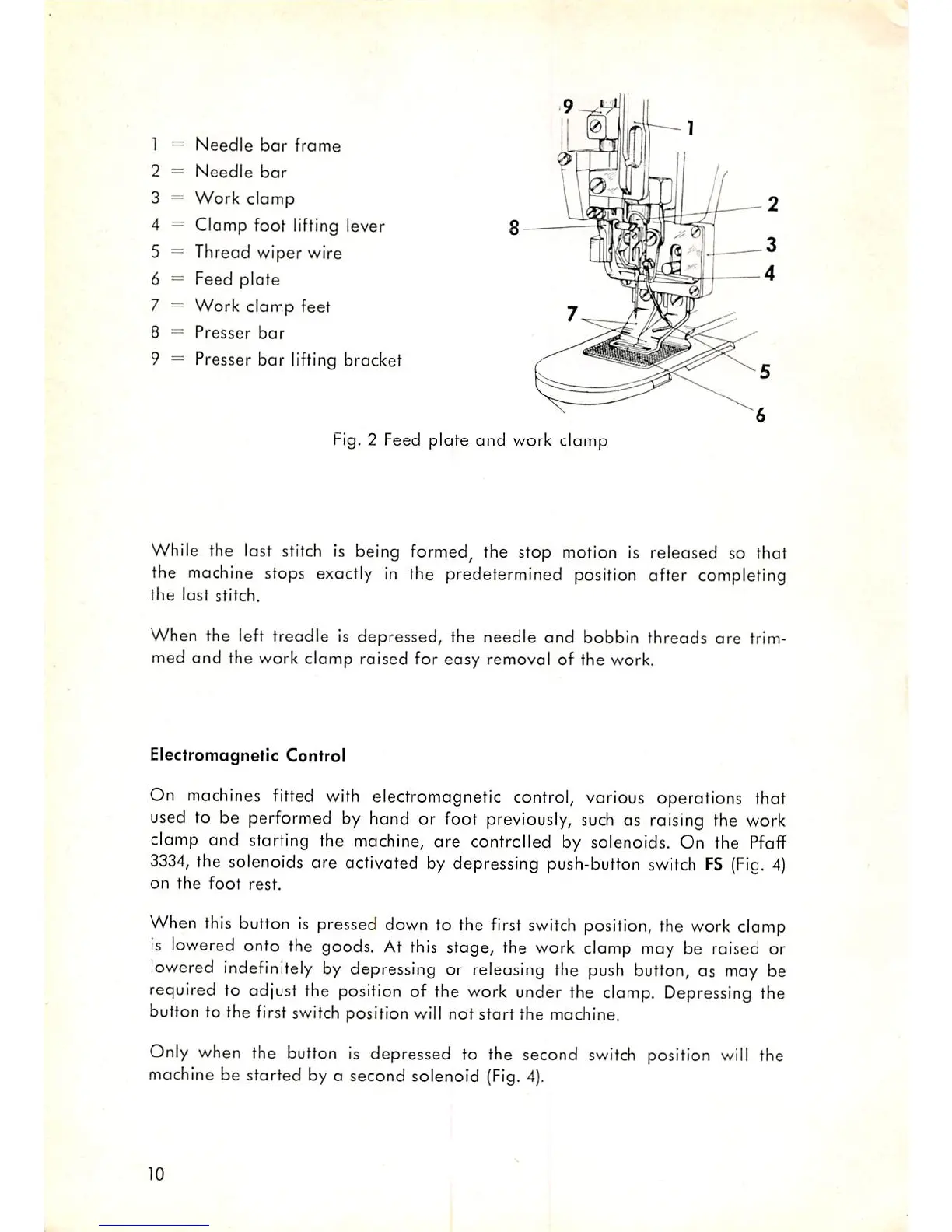

1 == Needle bar frame
2 = Needle bar
3 = Work clamp
4 = Clamp foot lifting lever
5 = Thread wiper wire
6 = Feed plote
7 = Work clomp feet
8 = Presser bar
9 — Presser bar lifting bracket
Fig. 2 Feed plate and work clamp
While the last stitch is being formed, the stop motion is released so that
the
machine stops exactly in the predetermined position after completing
the last stitch.
When the left treadle is depressed, the needle and bobbin threads are trim
med and the work clomp raised for easy removal of the work.
Electromagnetic Control
On machines fitted with electromagnetic control, various operations that
used to be performed by hand or foot previously, such as raising the work
clomp and starting the machine, are controlled by solenoids. On the Pfoff
3334, the solenoids ore activated by depressing push-button switch FS (Fig. 4)
on the foot rest.
When this button is pressed down to the first switch position, the work clamp
is lowered onto the goods. At this stage, the work clamp may be raised or
lowered indefinitely by depressing or releasing the push button, as may be
required to odjust the position of the work under the clamp. Depressing the
button to the first switch position will not start the machine.
Only when the button is depressed to the second switch position will the
machine be storted by a second solenoid (Fig. 4).
10
