d. Adjusting the Work Clomp
Adjust the work clamp frame on the feed plate carrier bar so that the
needle will neither be deflected by, nor strike against, the work clamp
feet, regardless how large the tack may be. The work clomp spring pres
sure can be regulated by nut h (Fig. 30).
The clamp foot lifting lever (Fig. 2) must not contact the lifting studs pro
truding from the work clamp face plate as, otherwise, the work clamp feet
will not press the material against the feed plate firmly. After the machine
has completed the last stitch and stopped, adjust the presser
bar and the
clomp foot lifting lever so that the top edge of the latter is positioned
just below the work clomp foot lifting studs.

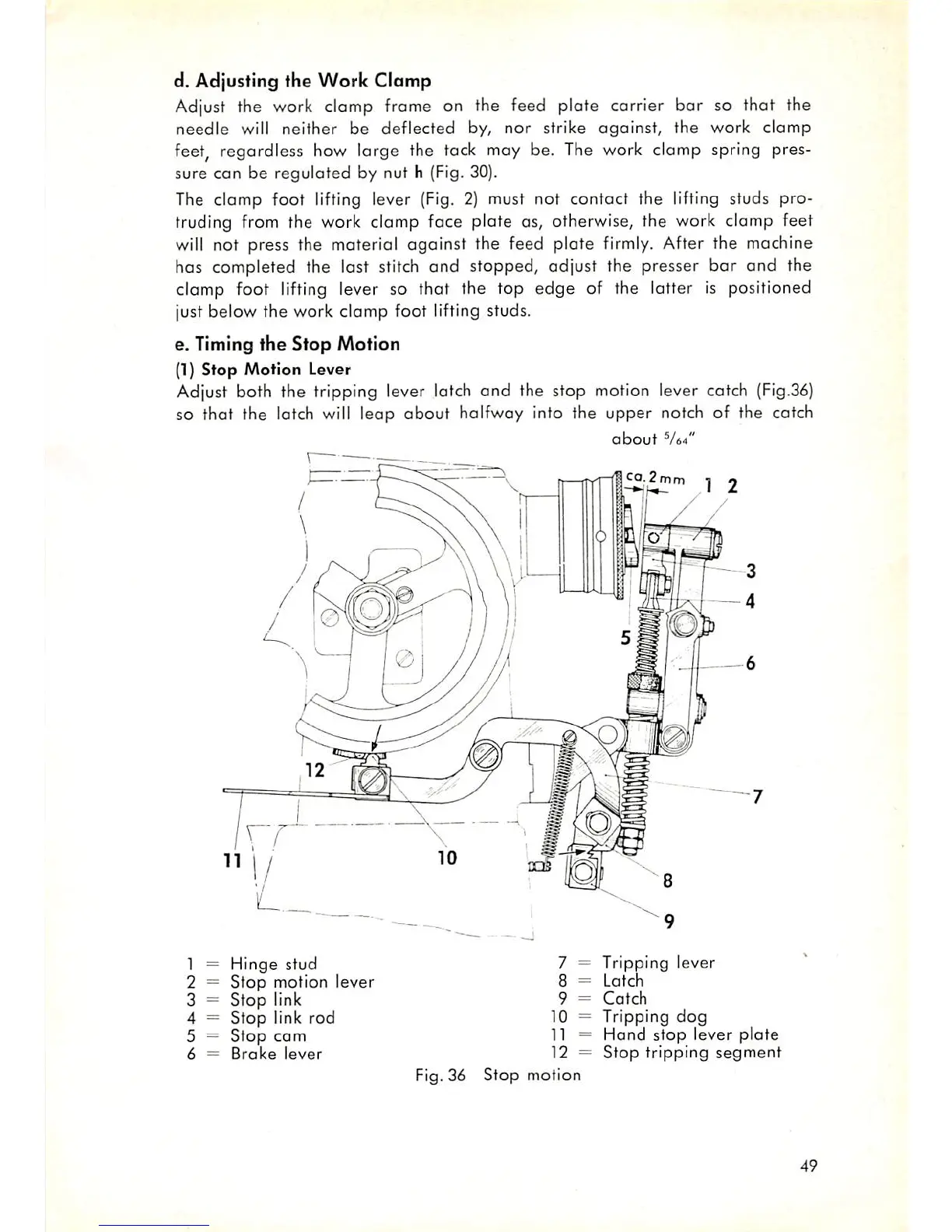

e. Timing the Stop Motion
(1) Stop Motion Lever
Adjust both the tripping lever latch and the stop motion lever catch (Fig.36)
so that the latch will leap about holfway into the upper notch of the catch
about
Hinge stud
Stop motion lever
Stop link
Stop link rod
Stop cam
Brake lever
7 = Tripping lever
8 = Latch
9 = Catch
10 = Tripping dog
11 = Hand stop lever plate
12 = Stop tripping segment
Fig.36 Stop motion
49
