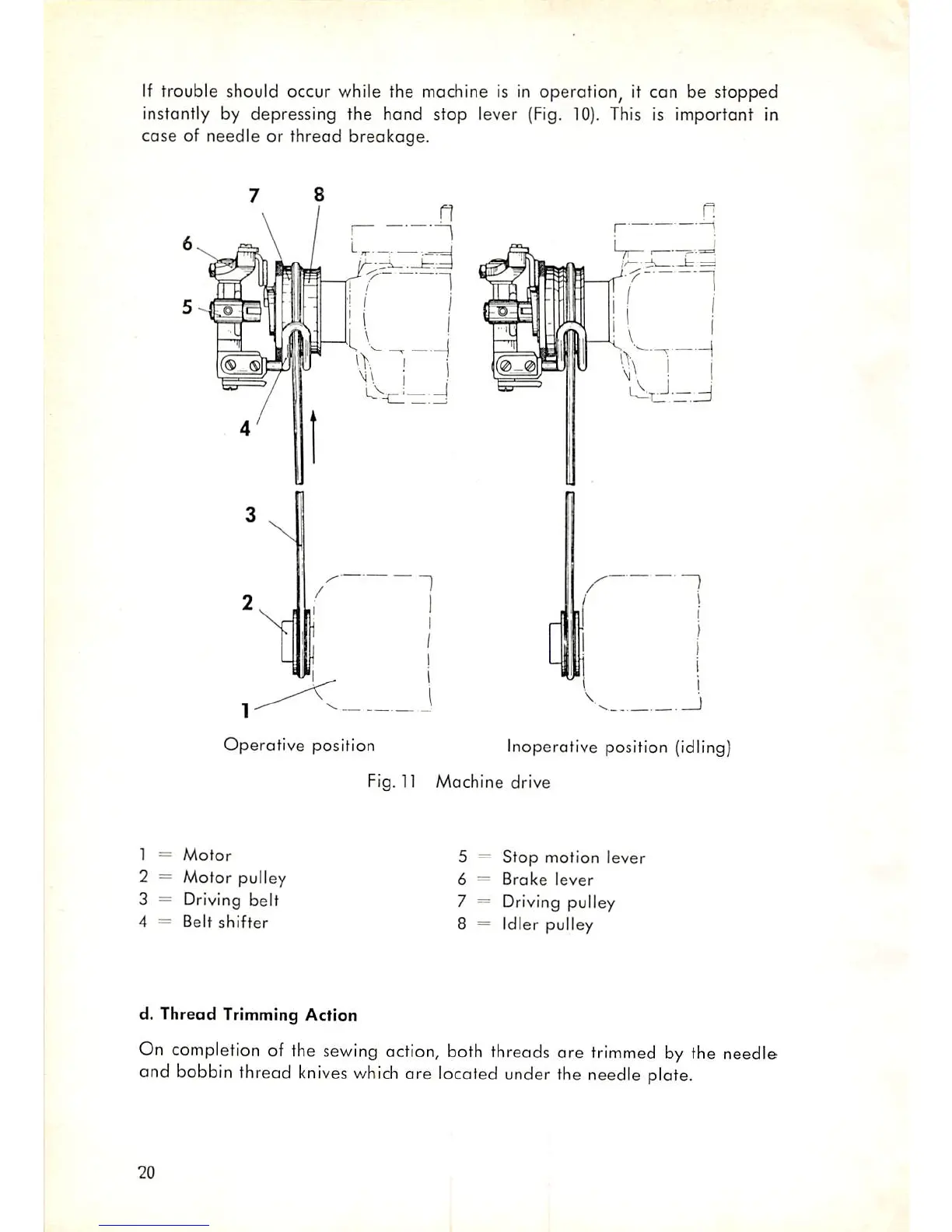

If trouble should occur while the machine is in operation, it can be stopped
instantly by depressing the hand stop lever (Fig. 10). This is important in
case of needle or thread breakage.
Operative
position
Inoperotive
position
(idling)
Fig. n
Machine
drive
1 =
Motor
2 = Motor pulley
3 = Driving belt
4 =
Belt
shifter
5 -
Stop
motion
lever
6 =
Broke
lever
7 = Driving pulley
8 = Idler pulley
d.
Thread
Trimming Action
On
completion
of the
sewing
action,
both
threads
are
trimmed
by the needle
and
bobbin
thread
knives
which
are
located
under
the
needle
plate.
20
