Pfaff 3334 - Key to Symbols Used

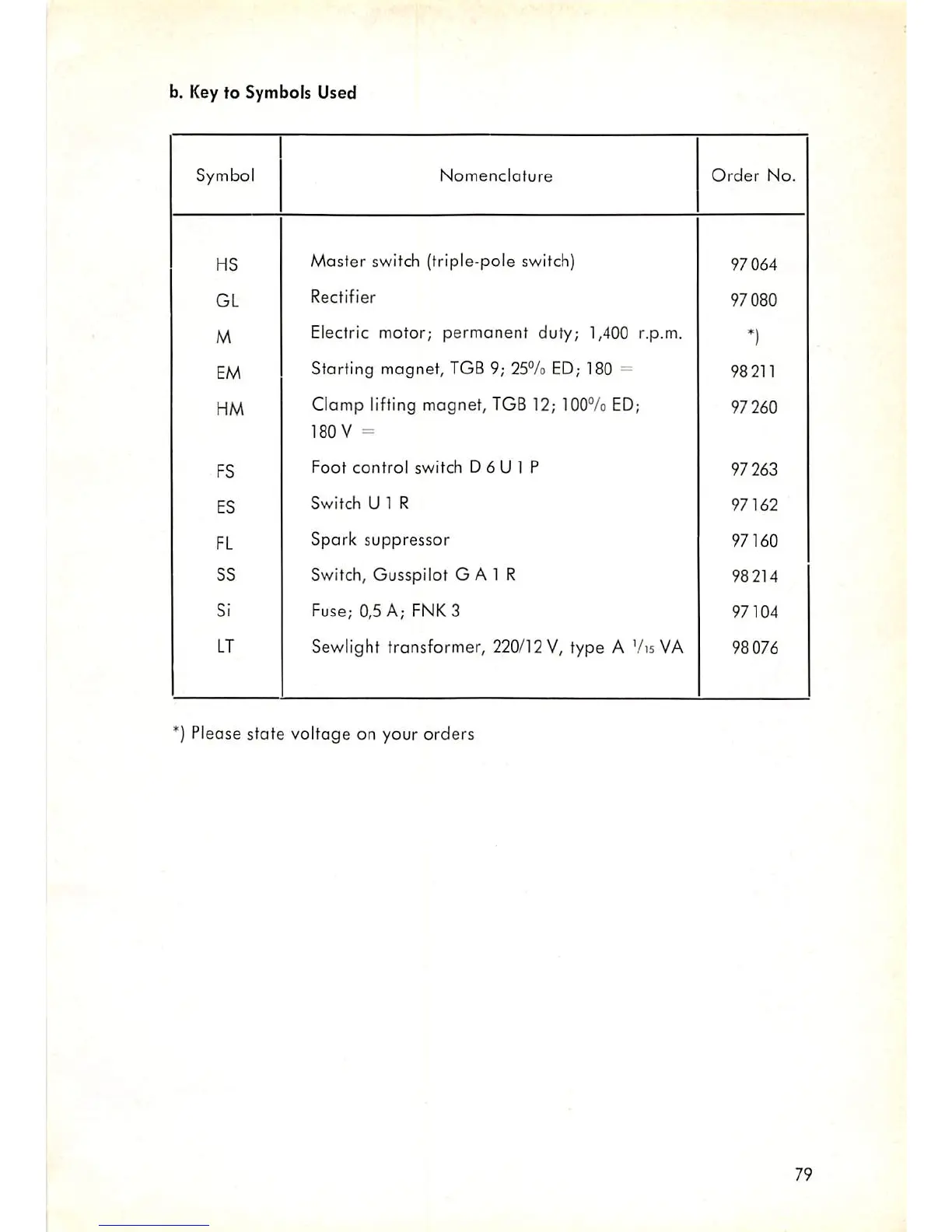

b. Key to Symbols Used
Symbol
Nomenclature
Order No.
HS
Master switch (triple-pole switch)
97064
GL
Rectifier
97080
M
Electric motor; permanent duty; 1,400 r.p.m.
')
EM
Starting magnet, TGB 9; 25% ED; 180 =
98211
HM
Clamp lifting magnet, TGB 12; 100% ED;
180V =
97260
FS
Foot control switch D 6 U 1 P
97263
ES
Switch U 1 R
97162
PL
Spark suppressor
97160
SS Switch, Gusspilot GAl R
98214
Si Fuse; 0,5 A; FNK3
97104
LT
Sewlight transformer, 220/12 V, type A VisVA
98076
*) Please state voltage on your orders
79
