I null

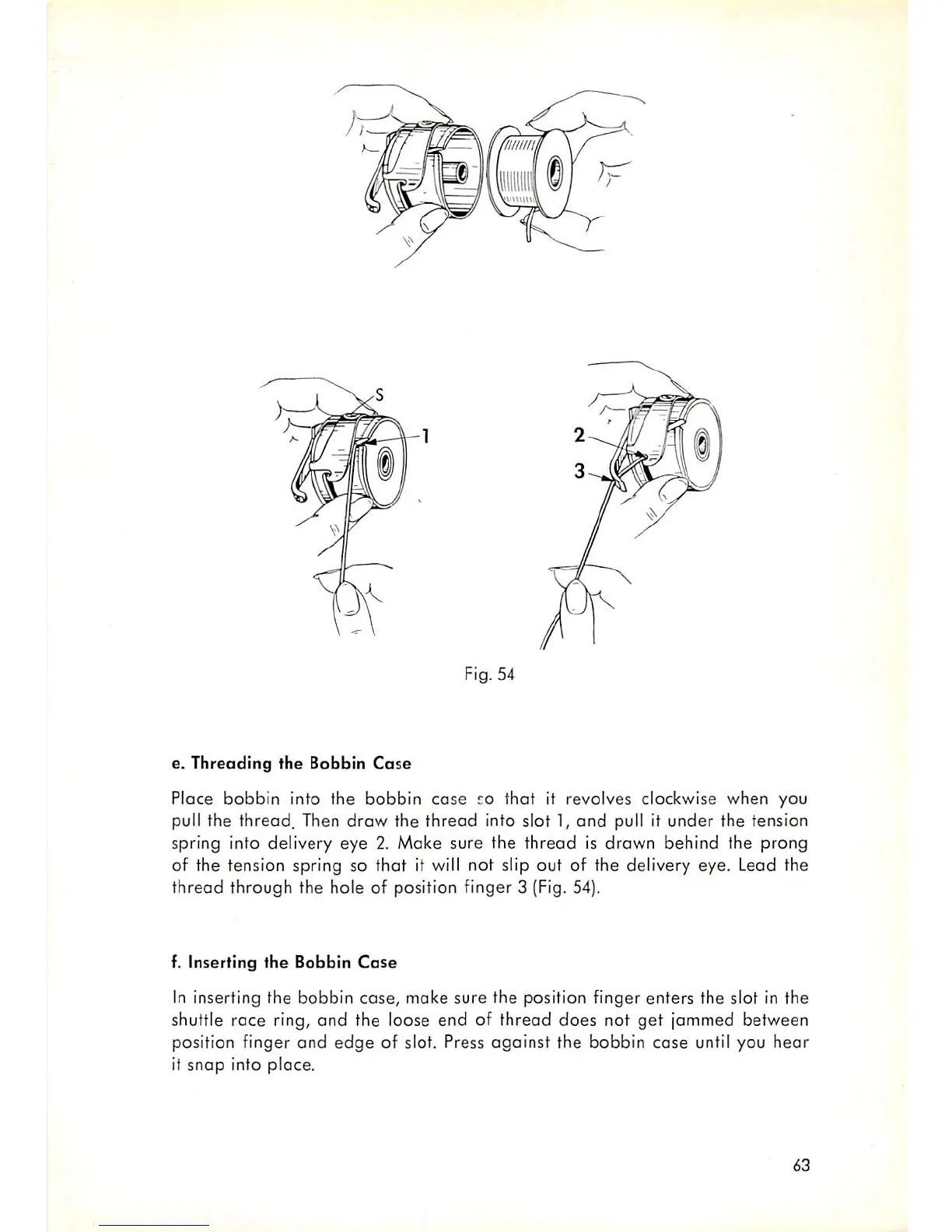

Fig. 54
e.
Threading the Bobbin Cose
Place bobbin into the bobbin case ro that it revolves clockwise when you
pull the thread. Then draw the thread into slot 1, and pull it under the tension
spring into delivery eye 2. Moke sure the thread is drawn behind the prong
of the tension spring so that it will not slip out of the delivery eye. Lead the
thread through the hole of position finger 3 (Fig. 54).
f. Inserting the Bobbin Cose
In inserting the bobbin case, make sure the position finger enters the slot in the
shuttle race ring, and the loose end of thread does not get jammed between
position finger and edge of slot. Press against the bobbin case until you hear
it snap into place.
63
