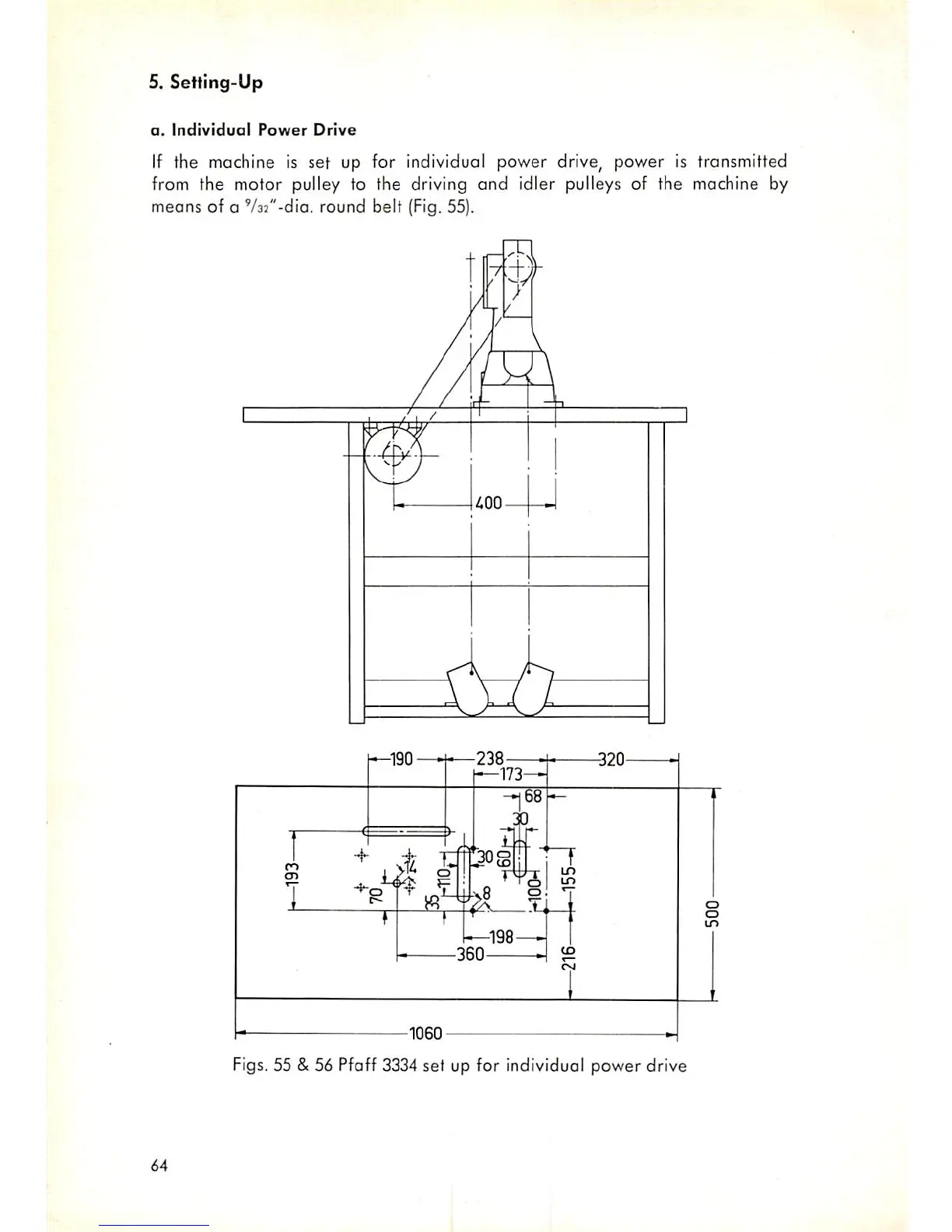

5.
Setting-Up
a.
Individual
Power
Drive
If
the
machine
is
set
up
for
individual
power
drive,
power
is
transmitted
from
the
motor
pulley
to
the
driving
and
idler
pulleys
of
the
machine
by
meons
of
a
V32"-dia.
round
belt
(Fig.
55).
Figs.
55
&
56
Pfoff
3334
set
up
for
individual
power
drive
