13.04.09 Vibrating presser lift
Requirement
With the vibrating presser lift at maximum and the stitch length set at "0", presser foot 1
and vibrating presser foot 2 must lift 7.0 mm from the needle plate when the handwheel
is rotated.
Set the vibrating presser lift at maximum and the stitch length at "0".
Allow the presser foot 1 to rest on the needle plate.
Turn the handwheel in its direction of rotation until the vibrating presser foot 2 has
reached its highest point.
Turn crank 3 (screws 4) in accordance with the requirement.
Carry out a check.
●
●
●
●
●

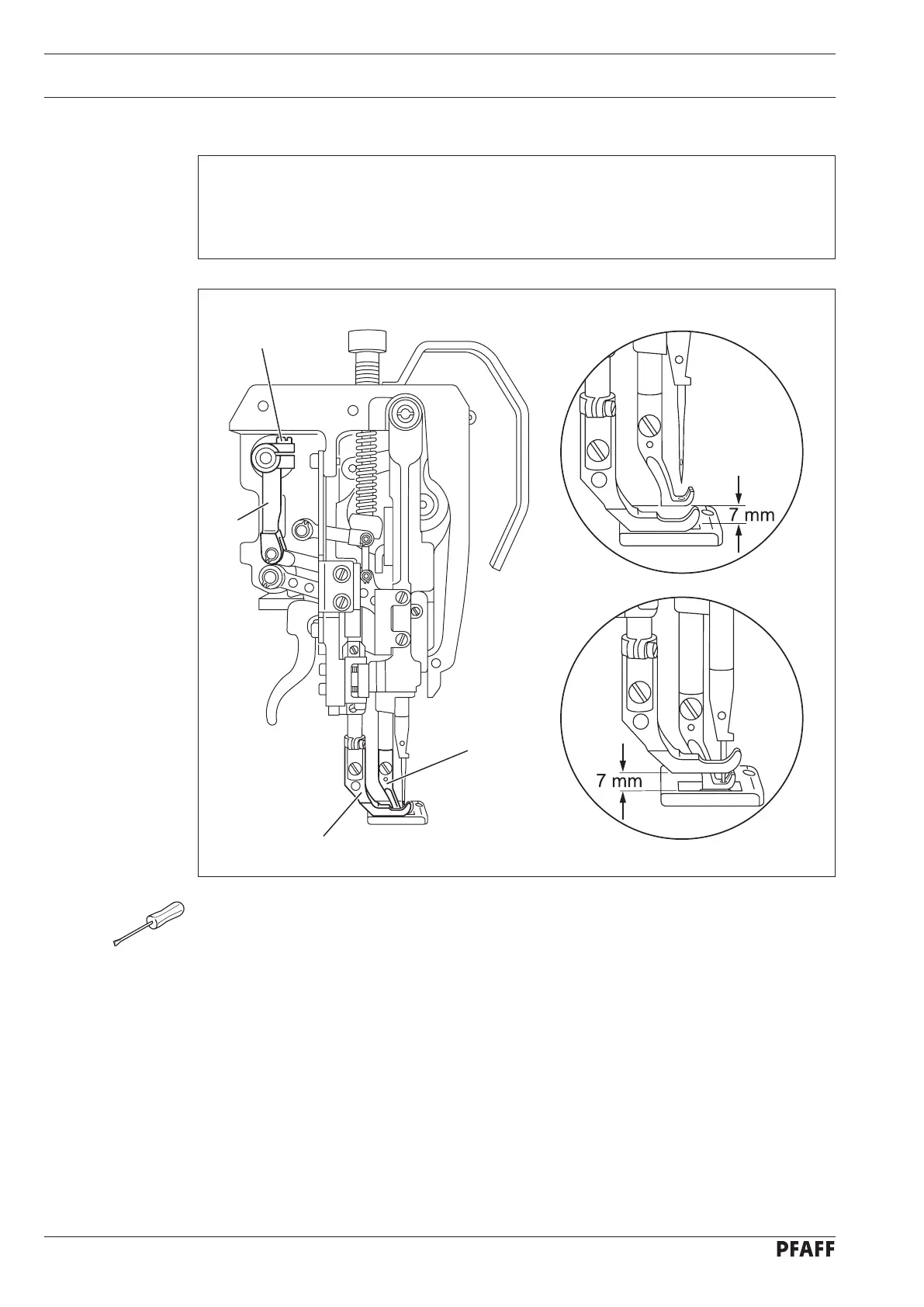

Fig. 13 - 9
