Adjustment
7
13.04.02 Lengthwise positioning of the feed dog
Requirement
With the stitch length set at its longest the clearances behind and in front of the bottom
feed dog 4 to the needle plate cutout must be the same.
Set the longest stitch length.
Move the clamp piece 1 (screws 2) as far to the left as possible on the clamp surface 3
of the rock shaft. The left screw must still be on the clamp surface.
Position feed dog 4 (screws 5) according to requirement.
●
●
●

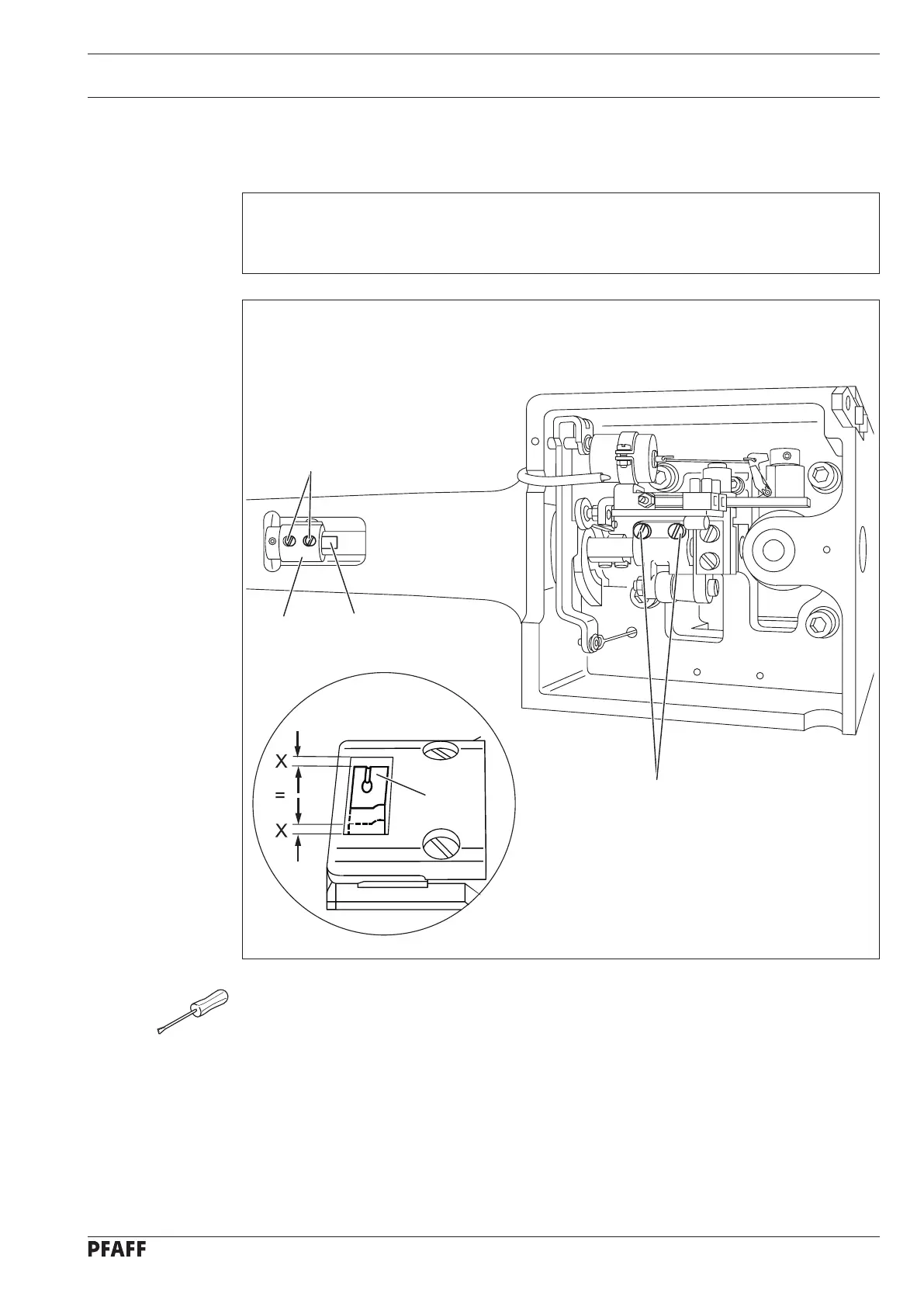

Fig. 13 - 02
3
1
2
5
4
