Pfaff 335 Adjustment Manual

Adjustment
26
13.05.07 Lateral position of thread catcher
Requirement
With the needle bar at b.d.c. the point of thread catcher 4 must be at the centre of the
needle.
Remove knife 1 (screws 2).
Set the needle bar at b.d.c.
Operate solenoid core 3 by hand and turn the balance wheel until the needle bar is at
t.d.c. In doing so, make sure that thread catcher 4 does not strike bobbin case position
stop 5 during its motion.
Set lateral position of thread catcher 4 (screws 6) according to Requirement.
For further adjustments do not yet refit knife 1.
●
●
●
●

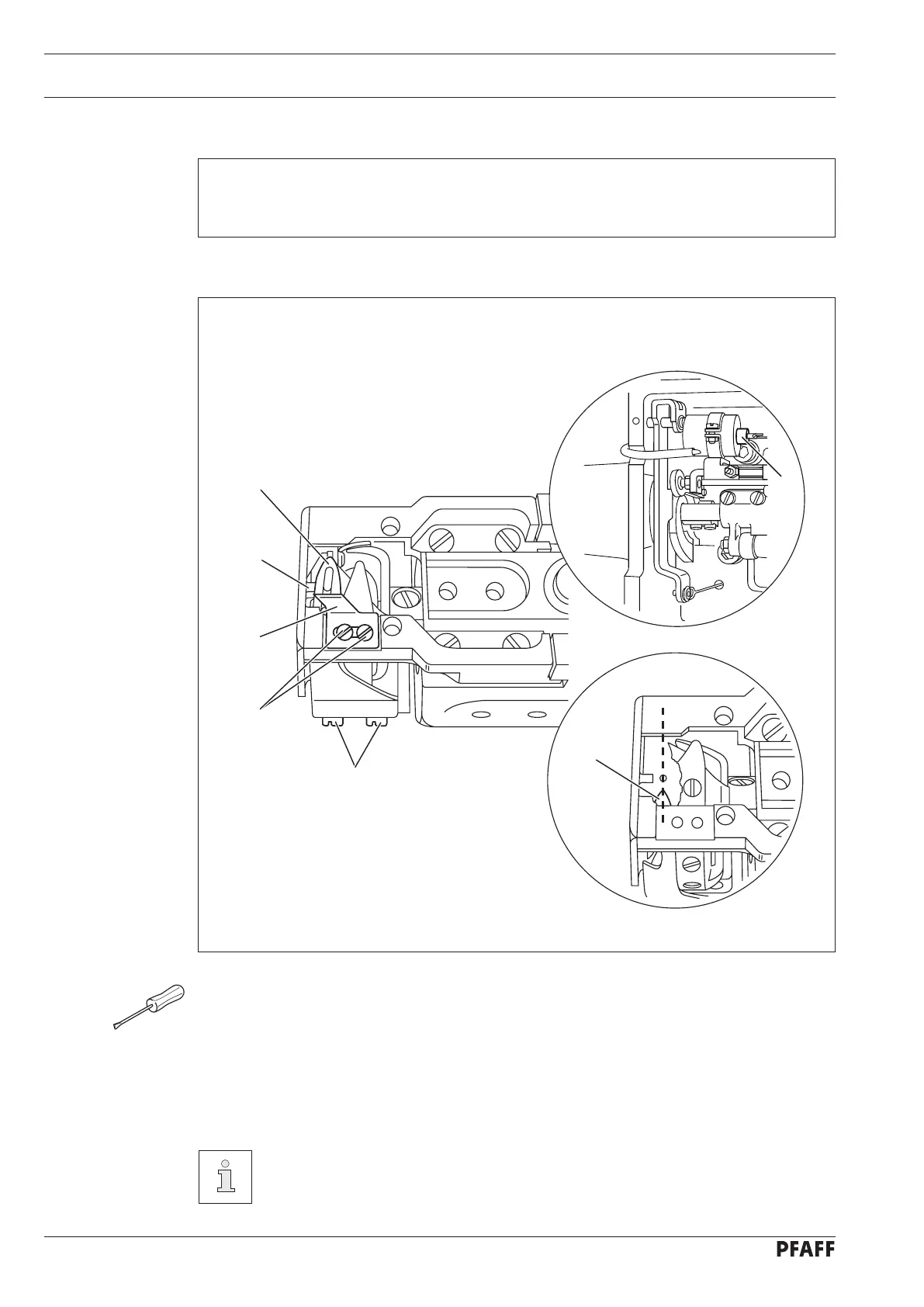

Fig. 13 - 21
1
6
2
4
5
4
3
