Pfaff 335

Adjustment
21
13.05.02 Tripping lever height
Requirement
With the needle bar at its bdc there must be a distance of 1.0 mm between the tripping
lever 3 and the control cam 4.
Bring the needle bar to its bdc by turning the handwheel.
Move the carrier 1 (screws 2) of the tripping lever 3 in the elongated hole in accordance
with the requirement.
●
●

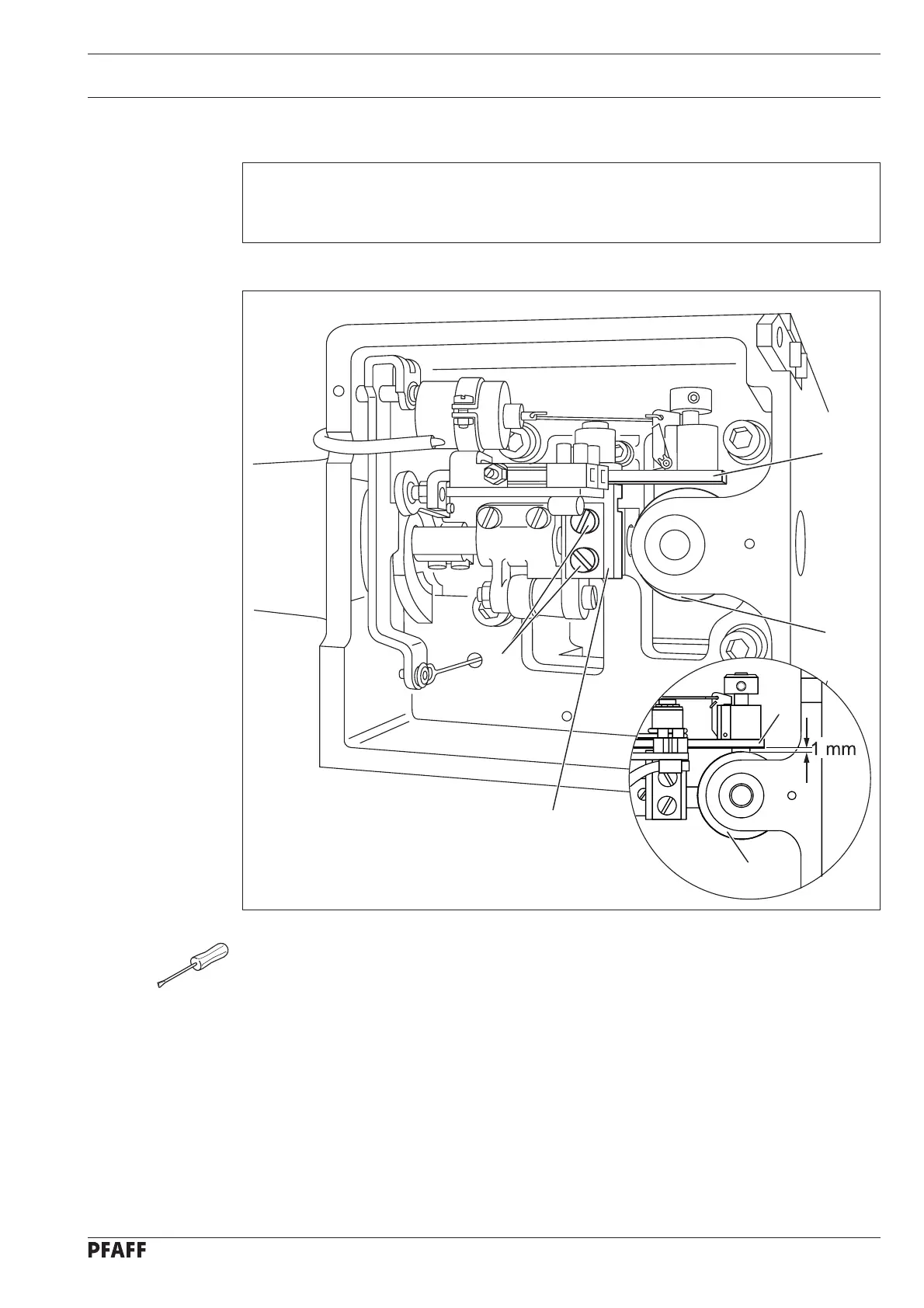

Fig. 13 - 16
1
3
2
4
4
3
