Pfaff 335 Adjustment Manual

Adjustment
15
13.04.10 Vibrating presser feeding motion
Requirement
With the presser foot 3 resting on the needle plate the vibrating presser 6 and the needle
point must both reach the needle plate at the same time with the vibrating presser stroke
at maximum.
Loosen nut 1.
Slide bolt 2 upwards in the elongated hole and tighten nut 1.
Allow the presser foot 3 to rest on the needle plate.
Loosen screws 4 enough so that the feed lifting eccentric 5 can be rotated with
difficulty.
Rotate the lifting eccentric 5 in accordance with the requirement.
Tighten screws 4.
Carry out a check.
●
●
●
●
●
●
●

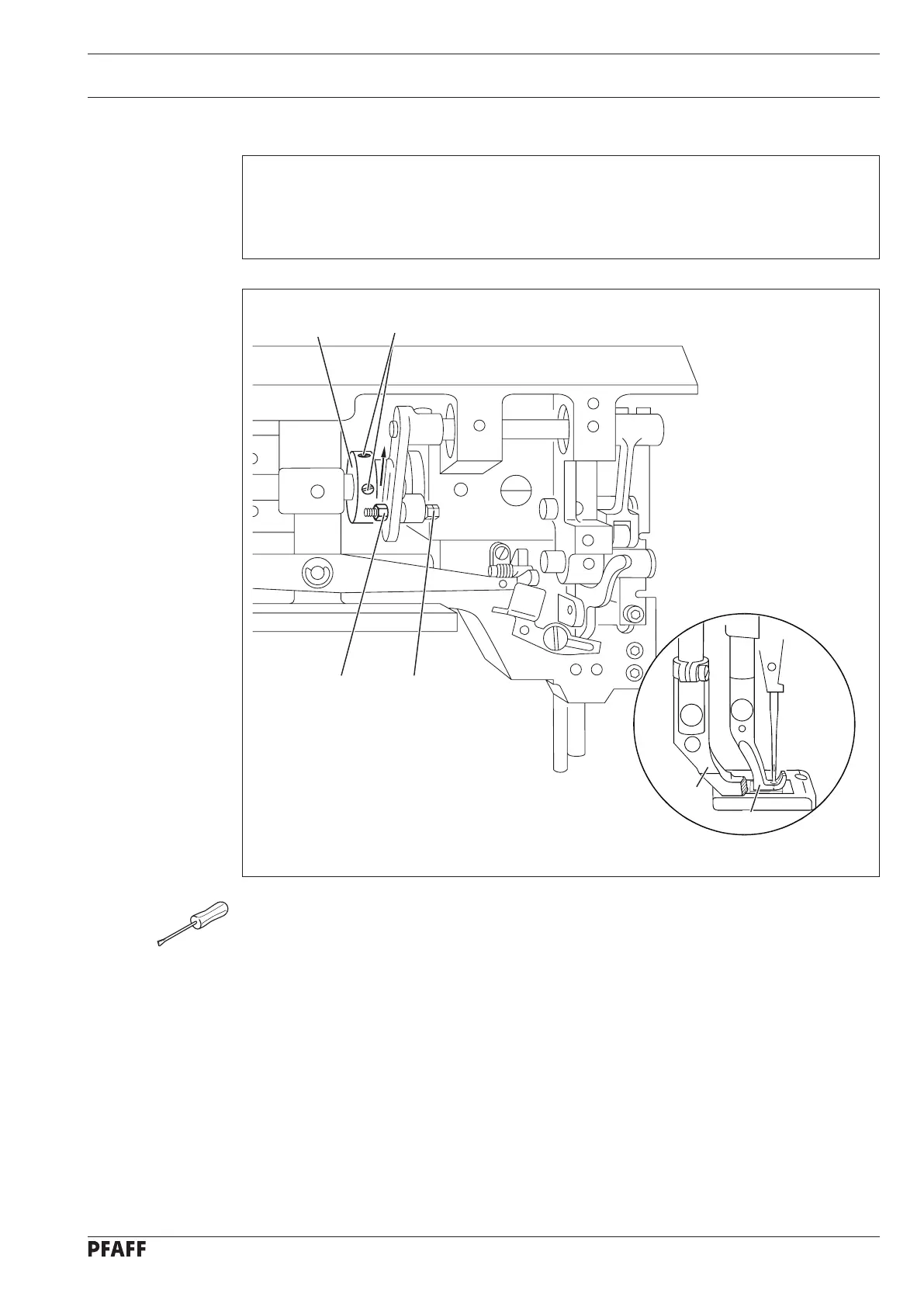

Fig. 13 - 10
1
2
3
4
6
5
