13.04.03 Height of the bottom feed dog (only on machines with lifting phase – P-version)
Requirement
When the stitch length is set at "0", in its highest position the bottom feed dog 4 should
be 0.8 - 1.1 mm above the top edge of the needle plate.
Set the stitch length at "0".
Adjust eccentric 1 and 2 (screws 3) in accordance with the requirement.
The bottom feed dog 4 should not touch cloth plate 5.
●
●

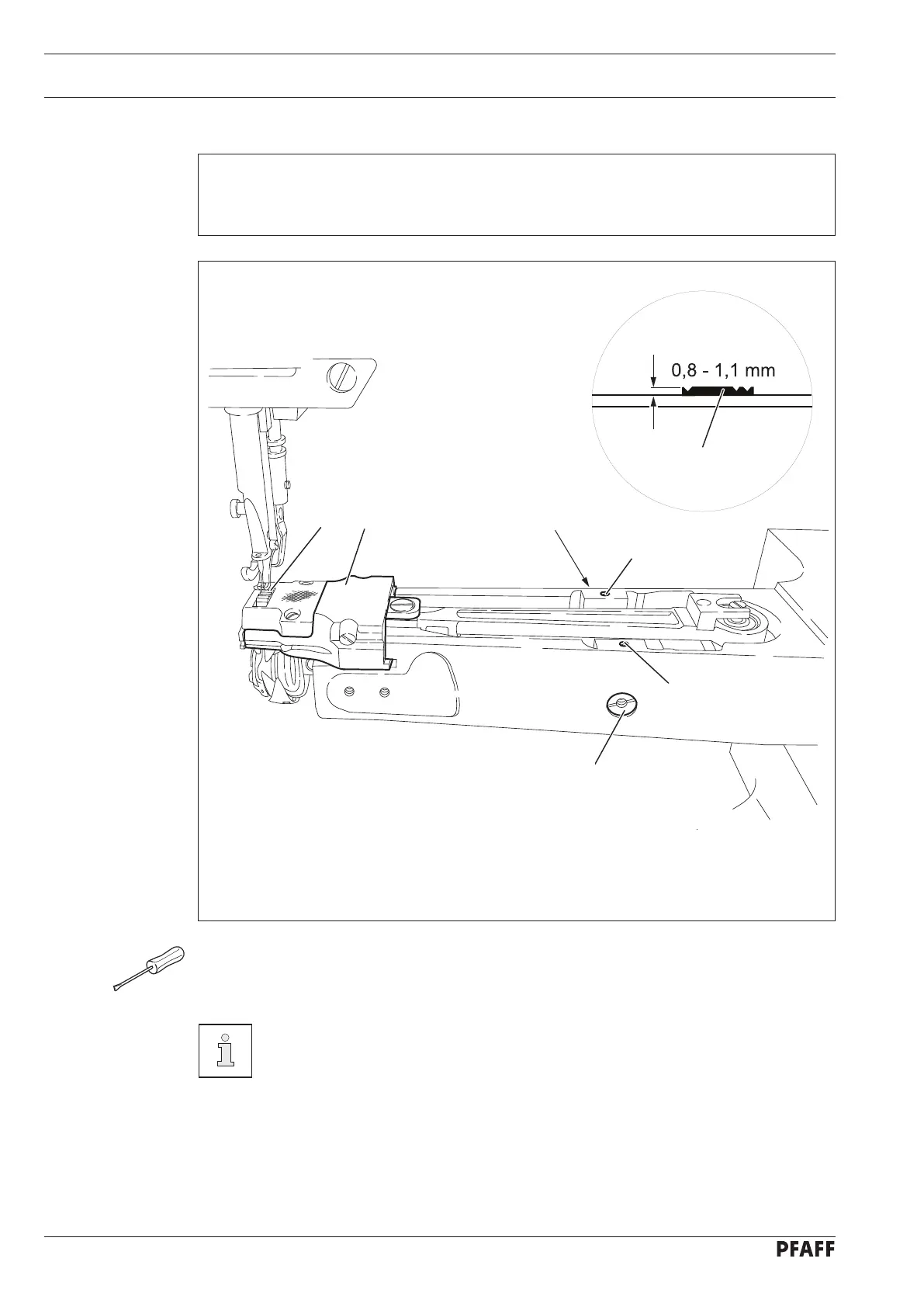

Fig. 13 - 03
2
3
4
1
5
3
4
