Pfaff 335 Adjustment Manual

Adjustment
18
13.04.13 Bobbin winder
Requirement
With the bobbin winder engaged the winder spindle must be driven reliably. With the bob-
bin winder disengaged, however, the friction wheel 5 must not touch the drive wheel 1.
The bobbin winder must stop automatically when the thread wound on the bobbin has
reached a point approx. 1 mm below the bobbin rim.
1.
2.
Adjust the drive wheel 1 (screws 2) in accordance with requirement 1.
Place a bobbin on the winder spindle, thread the bobbin and switch on the bobbin
winder.
Shift the regulating pin 3 (screws 4) in accordance with requirement 2.
●
●
●

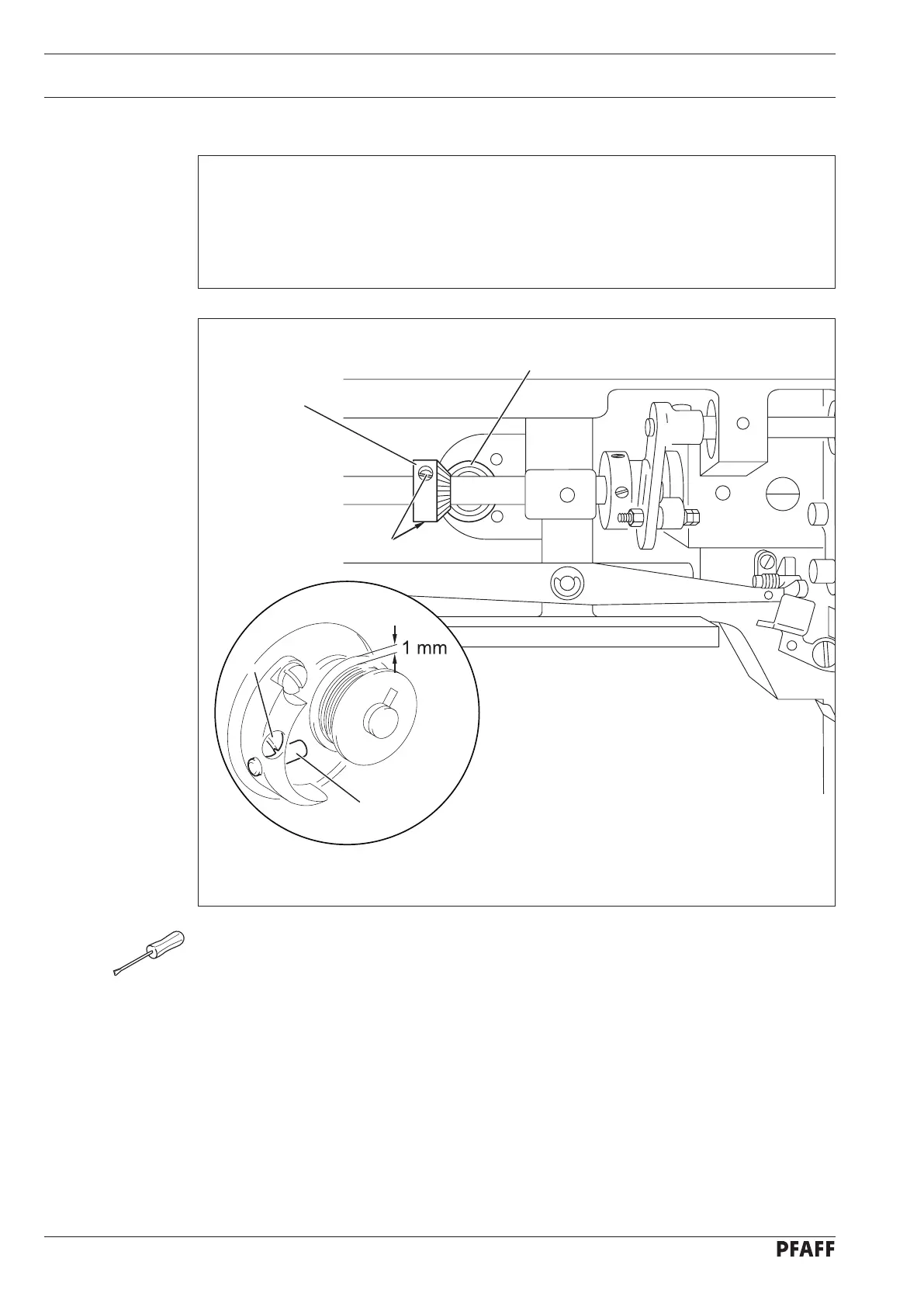

Fig. 13 - 13
2
3
1
2
4
5
