Pfaff 335 Adjustment Manual

Adjustment
23
13.05.04 Engaging solenoid
Requirement
With the needle bar at b.d.c. and solenoid core 1 fully operated there must be a clearance
of approx. 0.5 mm between locking pawl 7 and fixing collar 6.
Set the needle bar at b.d.c.
Push solenoid core 1 fully in.
Position solenoid housing 2 (screw 3) according to Requirement
If solenoid housing 2 strikes against lever 4, position lever 4 (screw 5) a little
farther to the left.
●
●
●

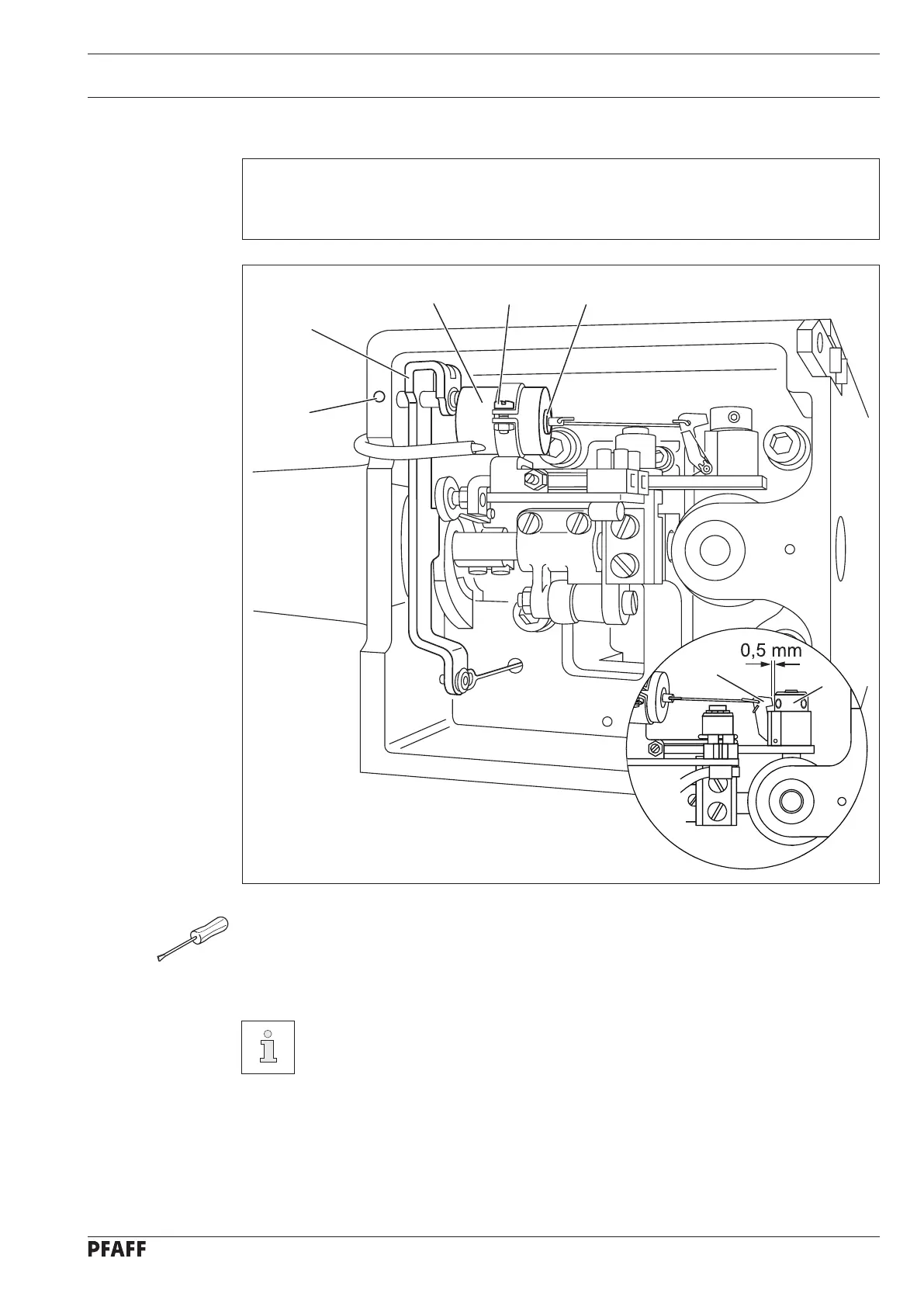

Fig. 13 - 18
1
3
4
5
2
7
6
