Adjustment
24

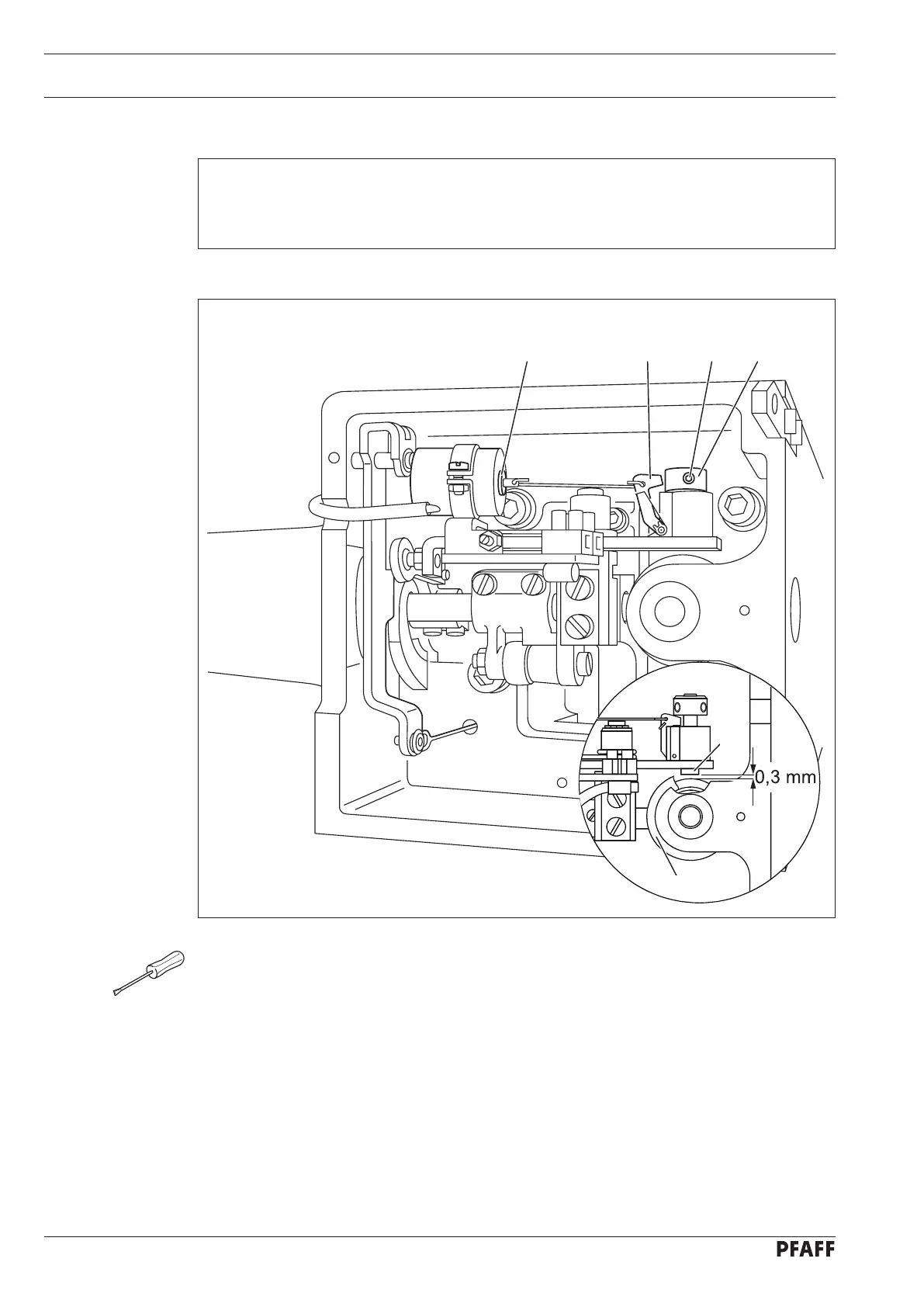

13.05.05 Control pin height
Requirement
With the thread trimmer in its resting position and locking pawl 4 engaged there must be
a clearance of 0.3 mm between the highest point of control cam 5 and control pin 6.
Set the needle bar at t..d.c.
Operate the solenoid core.
Position fixing collar 2 (screws 3) according to Requirement.
●
●
●
Fig. 13 - 19
1
4 3
2
5
6
