Control elements
17

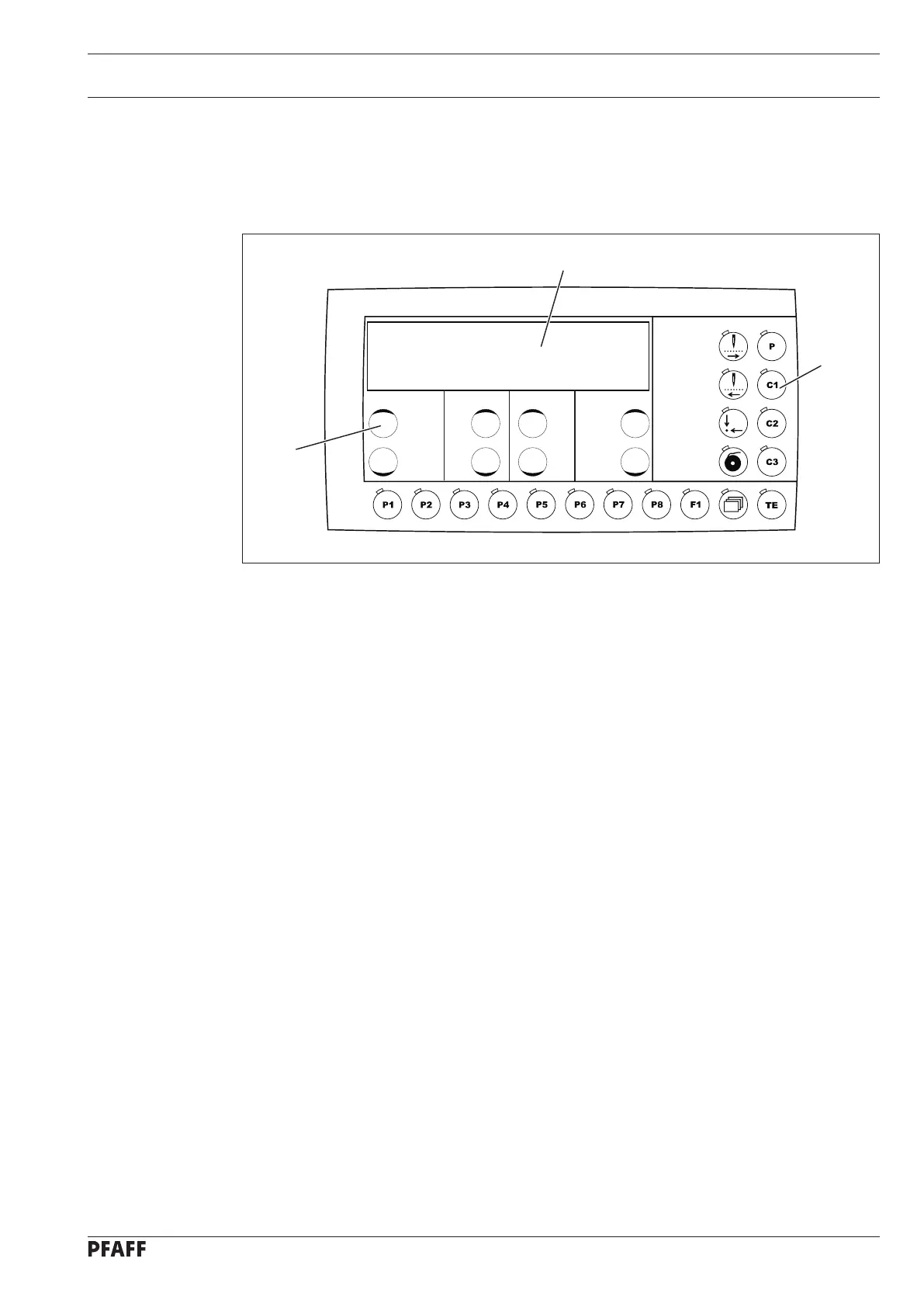

Fig. 7 - 05
1
7.05 Control panel
The control panel is used to select seam programs, call up machine functions, change
parameters, control the different operating modes, as well as for reading error signals and
service settings.
The control panel consists of display screen
1 with the function keys described below. The
display 1 consists of a two-row alphanumerical LCD display with 16 symbols per row. The
function keys 2 are located below and to the right of the display screen. The status of the
function keys and the machine operating modes are shown with LEDs in the corresponding
keys. Every time the function keys 2 are operated, a key tone sounds as confirmation of the
input. If the input required is invalid, e.g. because the max. permissible value for the
parameter input has been reached, a double tone is audible. An SD-card reader for data
transfer is integrated.
7.05.01 Screen displays
Depending on the operating mode, on the screen 1 information is shown about the machine
status, program selection, sequence program progress, input parameters, as well as error si-
gnals (also see Chapter 11 Input).
Depending on the operating mode, relevant data is displayed in combination with the ap-
propriate symbol or text, and can be altered directly.
When the parameters are entered, the number of the parameter selected is shown with
the corresponding parameter value, see Chapter 11.03 Parameter input.
If faults occur in the sewing operation, a corresponding error signal appears in the display,
see Chapter 11.09 Error messages on the display
●
●
●
2
3
