Pfaff 3371-10 series User Manual

Installation and commissioning
22

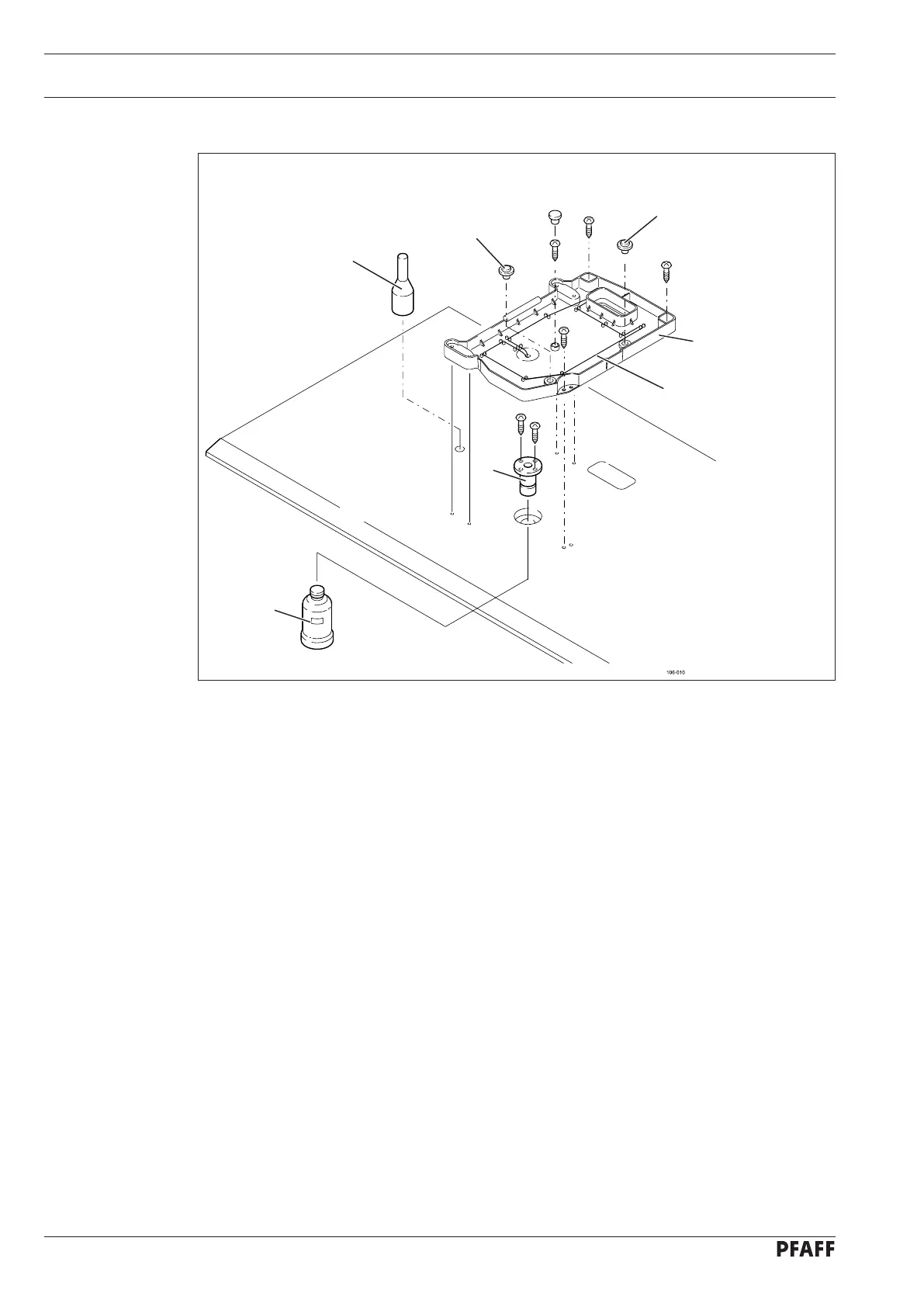

Fig. 8 - 04
1
4
6
2
5
3
3
8.01.04 Mounting the table top (for deliveries without stand)
Drill holes in the table top as shown in the drawing, see Chapter 8.01.05 Table top drill
hole plans.
Screw on the oil outlet 1.
Screw the oil tank
2 to oil outlet 1.
Set the rubber pads
3 in the fastening holes of the oil pan 4 and screw oil pan 4 to the
table top.
Set support 5 in the appropriate hole.
Place wick
6 iin the holders of oil pan 4.
●
●
●
●
●
●
