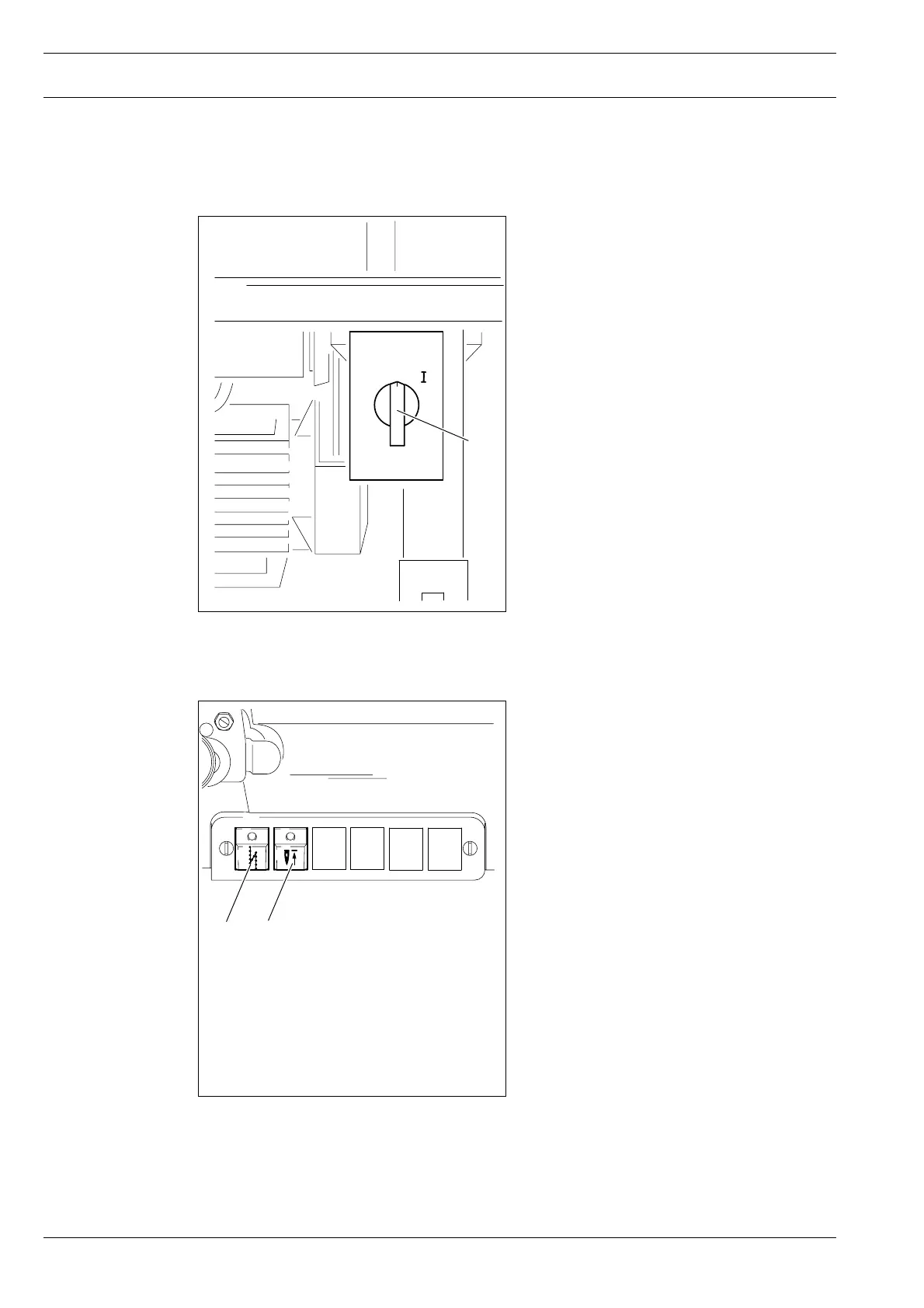

Controls
7 - 1
Fig. 7 - 01
7
Controls
7
.01
On/off switch
●
Switch machine on or off by turning on/-
off switch
1
.
Fig. 7 - 02
7
.02
Keys on machine head
●
The keys on the machine head are pres-
sed to set off certain functions.
Key
1
:
Reverse sewing or intermediate
backtack within the seam
Key
2
:
Raise needle
2
1
O
1
15
17
