Pfaff 422 - Feed Dog Positioning in Needle Plate

Adjustment
11 - 4
11.04.03 Positioning the feed dog in the needle plate cutout
Requirement
1. The feed dog must be positioned in the centre of the needle plate cutout.
2. At the longest stitch length setting the feed dog must not strike the needle plate
during its movement.

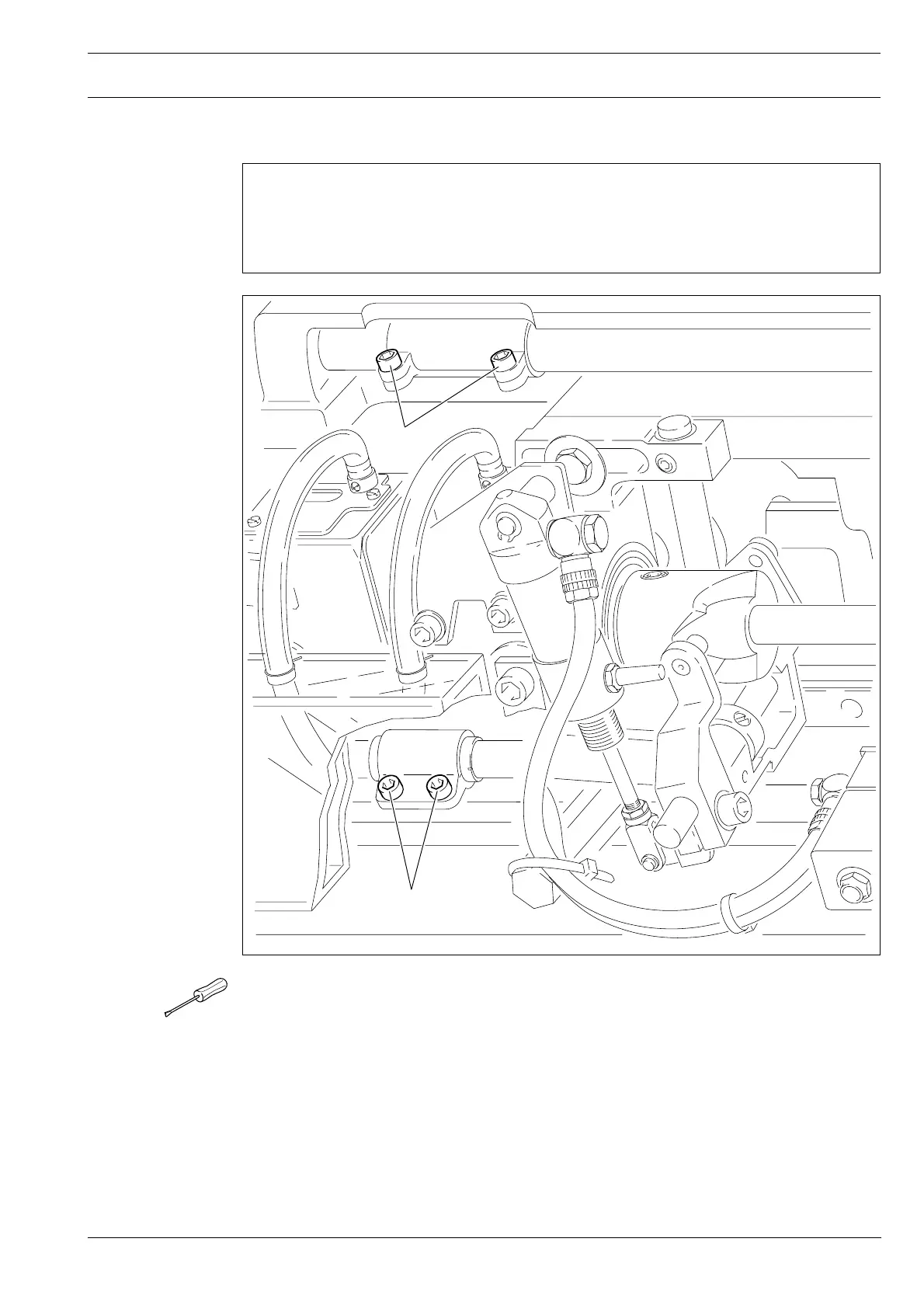

Fig. 11 - 03
● Raise pressser foot.
● Position fed dog (screws 1 and 2) according to Requirements.
1
2
