8 - 3
Installation and commissioning

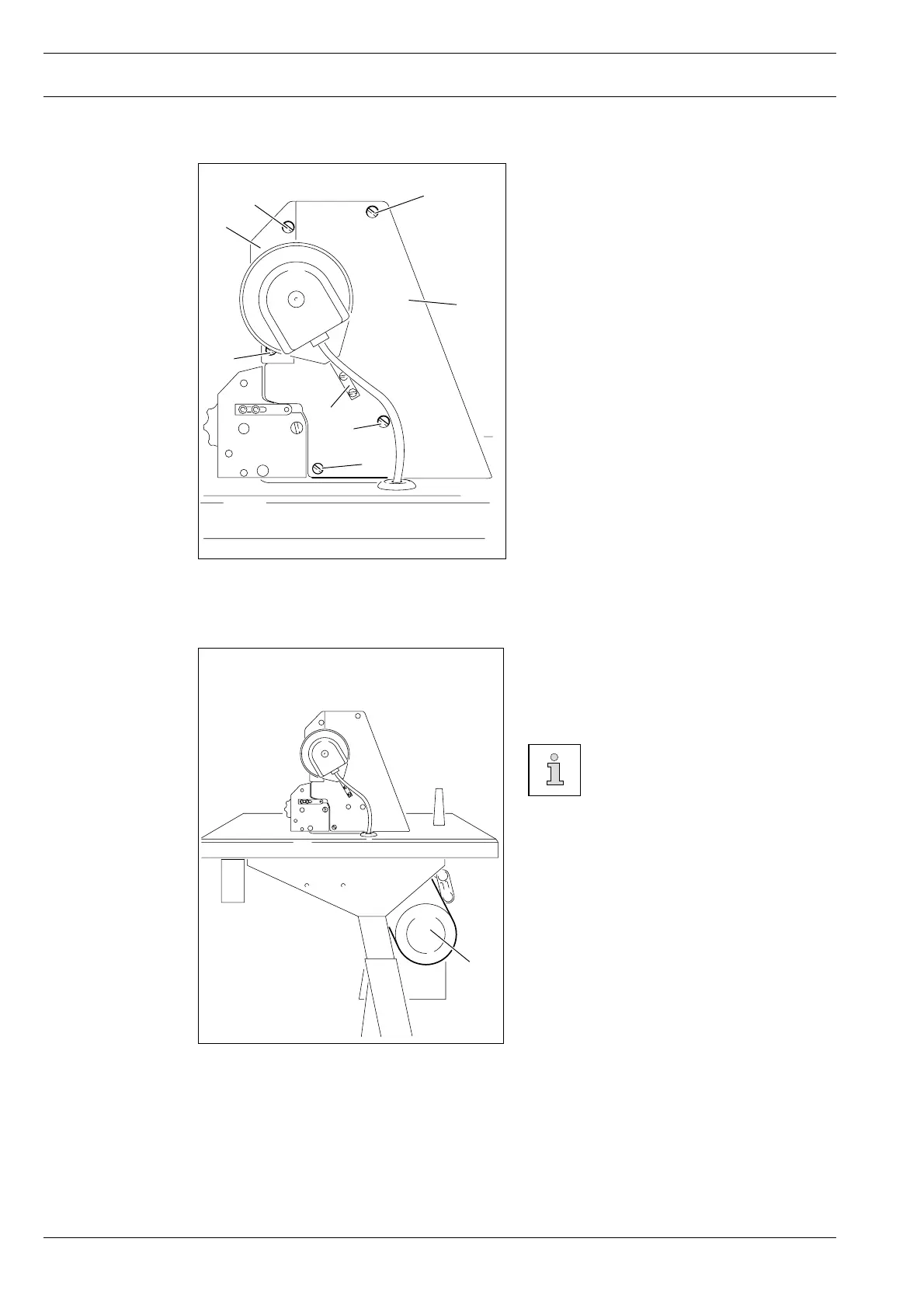

8.01.05 Fitting the bottom v-belt guard
● Position v-belt guard 1 in such a way that
motor pulley and v-belt can run freely.
Fig. 8 - 05 shows a Quick
motor. If a different motor is
used, the instruction manual of
the motor must be complied
with.
Fig. 8 - 05
Fig. 8 - 04
1
2
8.01.04 Fitting the top v-belt guard
● Screw retainer 1 onto right v-belt half 2.
● Fit left v-belt part 3 using screws 4.
● Fit right part 2 of the v-belt guard by
pushing its slots behind the heads of
retaining screws 5 and screw it on
with screw 6. Afterwards fully tighten
screws 5 through the holes.
4
4
3
5
5
6
1
