9 Setting up
All instructions and regulations in this instruction manual must be observed.
Special attention must be given to all safety regulations!
All setting-up work must only be done by personnel with the necessary train-
ing. For all setting-up work the machine must be isolated from its power supply
by turning off the on/off switch or removing the machine plug from the electric
power socket!
9.01 Inserting the needle
Switch the machine off!
Danger due to unintentional
starting of the machine!
Only use the following needle systems:
PFAFF 422: System 134
PFAFF 1422: System 134-35
● Set the needle bar at its top position and
loosen screws 1.
● Push needles 2 and 3 fully in (the long
groove of needle 2 must face to the right
and that of needle 3 to the left).
● Fully tighten screws 1 again.
The choice of needle depends on the model of the machine and the thread and
material used for sewing (see Chapter 3, Specifications).

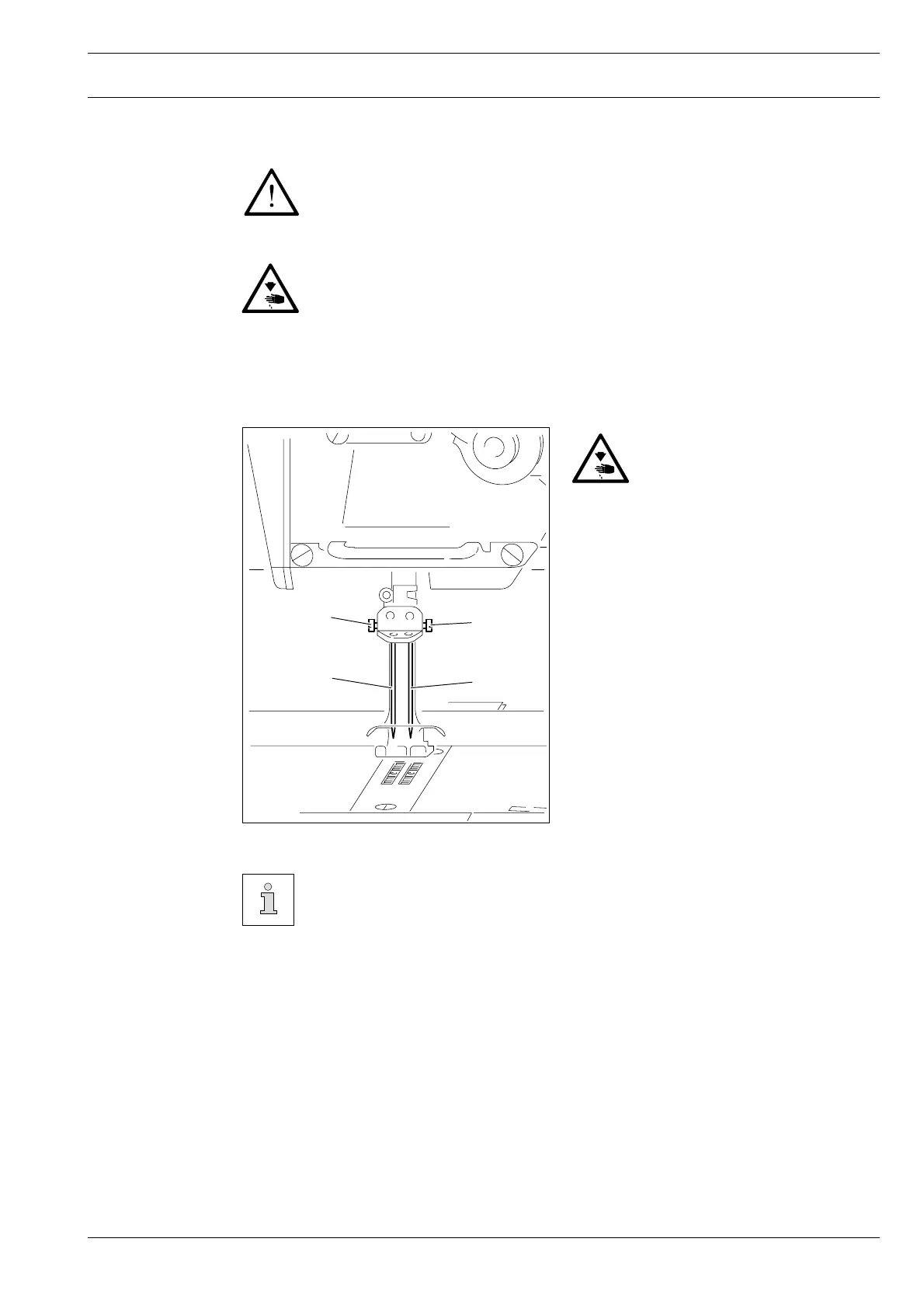

Fig. 9 - 01
1
1
2
3
