Installation and commissioning
8 - 4
8.01.07 Fitting the reel stand
● Fit the reel stand as shown in Fig. 8 - 07.
● Afterwards insert the stand in the hole in
the table top and secure it with nuts pro-
vided.

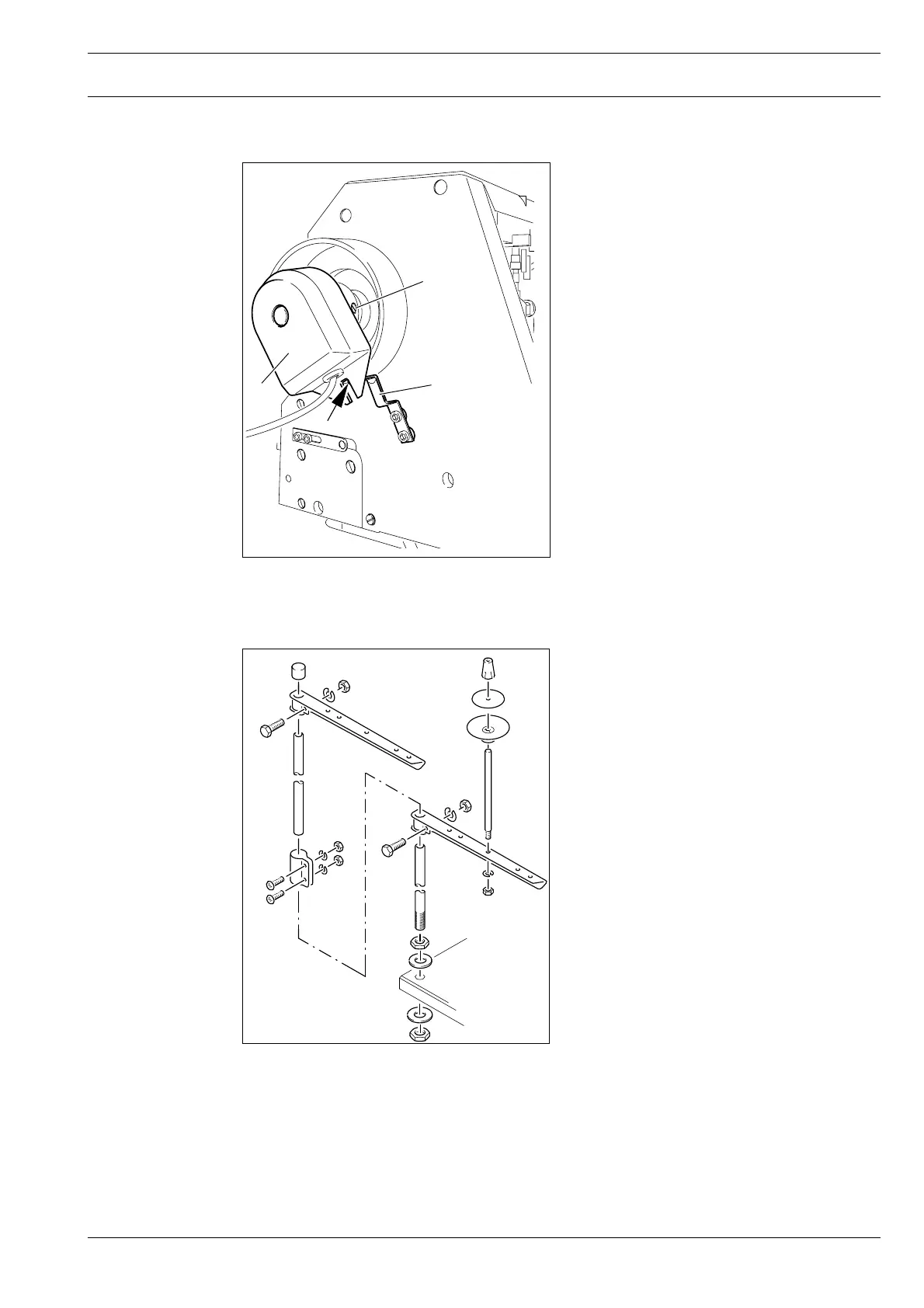

Fig. 8 - 07
Fig. 8 - 06
8.01.06 Fitting the synchronizer
● Push synchronizer 1 onto the shaft so that
stop 2 is standing in the slot on the
synchronizer (see arrow)
● Tighten screws 3 a little.
● Connect the synchronizer plug to the
socket on the control box.
● Adjust the synchronizer (see Chapter
11.04.01 Adjusting the synchronizer)
3
2
1
1
