Adjustment
11 - 19
11.04.17 Bobbin winder
Requirement
1. When the bobbin winder is engaged the winding spindle must be reliably driven; when
the bobbin winder is disengaged, friction wheels 5 must not rest on drive wheels 1.
2. The bobbin must wind the thread evenly and switch itself off when the filled thread is
1 mm from the edge of the bobbin.
● Position drive wheels 1 (screws 2) according to Requirement 1.
● Position adjusting pins
3
(screws 4) of both bobbin winders according to Requirement 2.
2
5

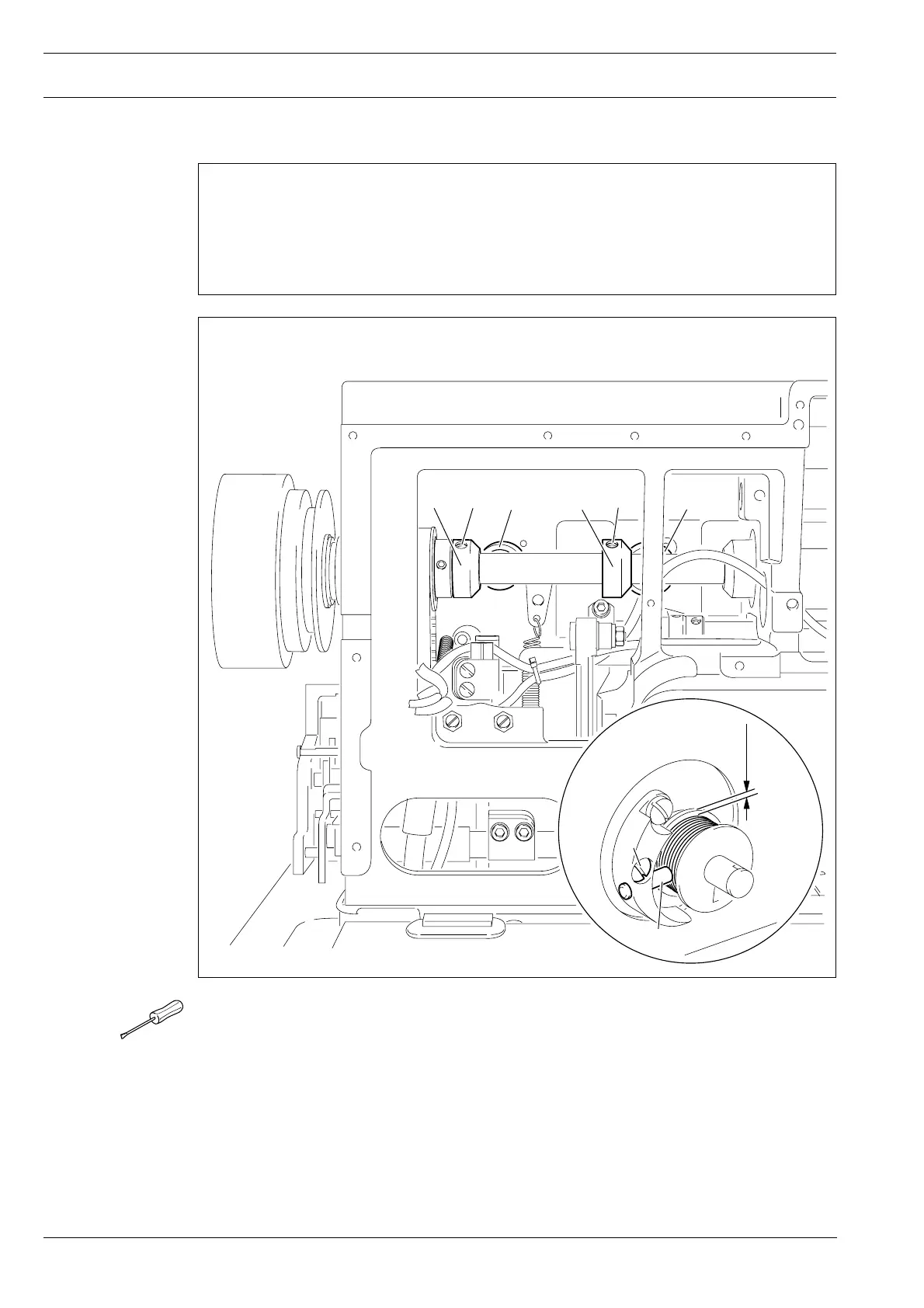

Fig. 11 - 17
1
3
4
1 mm
5
12
