Pfaff 422 User Manual

Adjustment
11 - 30

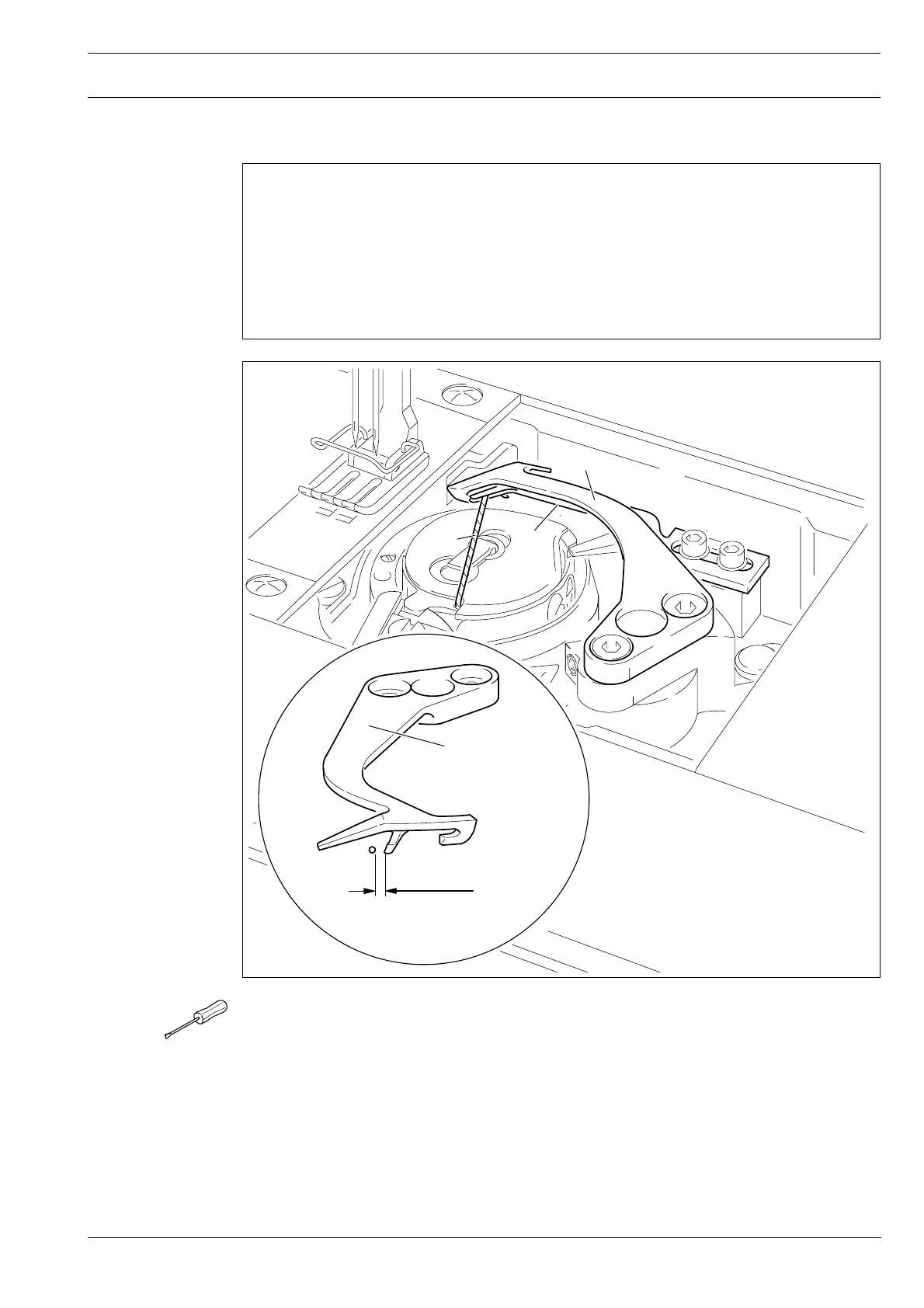

Fig. 11 - 28
2 mm
1
2
1
3
11.05.09 Manual cutting test
Requirement
1. When thread catcher 1 is on its forward stroke, it must not carry bobbin thread 3
forward too.
2. When thread catcher 1 is in its front position, bobbin thread 3 must be approx. 2 mm
behind the prong of thread catcher 1.
3. After the trimming action, both needle- and bobbin thread must be perfectly cut, and
bobbin thread 3 retained.
● Sew a few stitches.
● Turn off the on/off switch.
● Carry out cutting test manually.
● Check Requirement 1 and readjust thread catcher 1 according to Chapter 11.05.02
Thread-catcher height if necessary.
● Check Requirement 2 and readjust thread catcher 1 according to Chapter 11.05.03
Thread-catcher position if necessary.
● Check Requirement 3 and readjust bobb-thread retaining spring 2 according to Chapter
11.05.06 Bobbin-thread retaining spring if necessary.
