14.
Lifting
the
Presser
Bar
Both
the
vibrating
presser
and
the
presser
foot
are
mounted
on
the
presser
bar.
The
presser
bar
lifting
mechanism
is
enclosed
In
the
machine
arm.
To
mount
the
knee
lever,
push
it
over
the
lower
end
of
vertical
shaft
r
under
the
tabletop.
The
lever
is
held
in
place
by
angular
bracket
s
which
snaps
Into
place
after
transverse
driving
pin u
has
entered
cutouts
t
in
right-angled
coupling
sleeve
q
(Fig,
18).
When
the
coupling
sleeve
Is
pushed
onto
the
end
of
the
shaft,
resilient
bracket
s
must
be
compressed
to
open
it
slightly.
Motion
is
transmitted
from
the
vertical
shaft
to
the
presser
bar
by
means
of a
crank,
a
connection
and
a
bellcrank
lever
which
raises
the
presser
bar.
A
small
hand
lever
at
the
back
of
the
machine
(Fig.
20)
serves
to lock
the
vibrating
presser
and
the
presser
foot
in their
highest
position.
This
lever
is
flicked
to
the
left
to
retain
the
presser
bar
after
it
has
been
raised
by
knee
action.
To facilitate
the
tilting
back
of
the
sewing
head
without
removing
the
knee
lever
completely,
the
knee
lever
rock
shaft
is
no
longer
screwed
to
the
angular
sleeve,
but
rather
held
in
place
by
a
spring-loaded
pin v
(Fig.
18)
so
that
the
knee
lever
can
be
pulled
forward
off
its
shaft
with
a
slight
jerk.
A
new
feature
of
the
knee
lever
is its
hinged
foam-plastic-padded
knee
plate
which
is
con
toured
to
hug
the
operator's
knee.

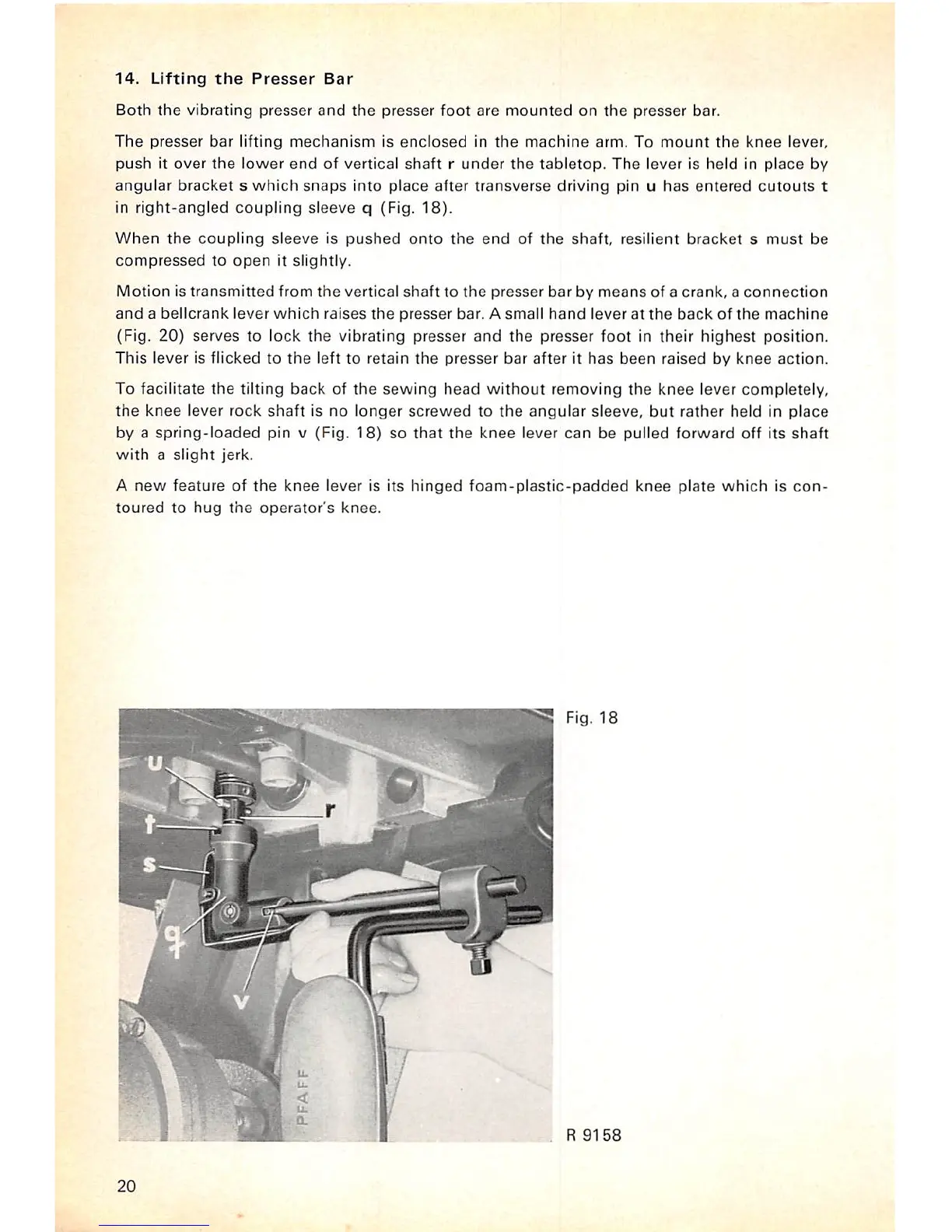

Fig.
18
R
9158
20
