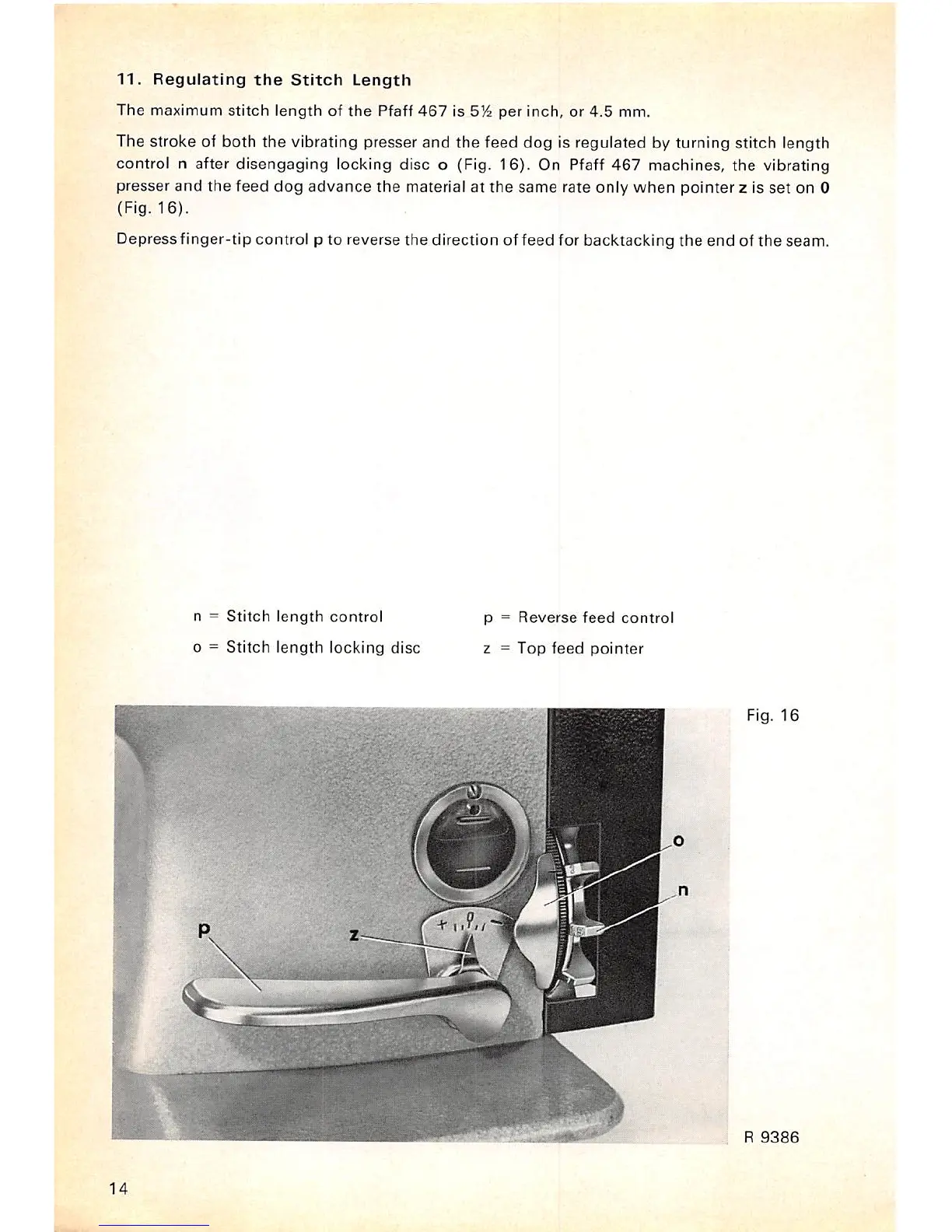

Pfaff 467 - Regulating the Stitch Length

11. Regulating the Stitch Length
The maximum stitch length of the Pfaff 467 is 5!^ per inch, or 4.5 mm.
The stroke of both the vibrating presser and the feed dog is regulated by turning stitch length
control n after disengaging locking disc o (Fig. 16). On Pfaff 467 machines, the vibrating
presser and the feed dog advance the material at the same rate only when pointer z is set on 0
(Fig. 16).
Depress finger-tip control p to reverse the direction of feed for backtacking the end of the seam.
14
n = Stitch length control
o = Stitch length locking disc
p = Reverse feed control
2 = Top feed pointer
Fig. 16
R 9386
