31. Adjusting the Vibrating Presser
Lower the presser bar so that the presser foot rests on the needle plate. Then turn ther balance
wheel until the roller at the top of the small two-armed lever behind the presser bar is positioned
at its extreme left, as seen from the needle-bar end of the machine. Since the roller in this
position is concealed by the presser bar and the needle bar connecting link, watch connecting
link V (Fig. 34) which is visible below the lower presser bar bracket and is at its extreme
right position when the roller is at its extreme left. Push the all-purpose gauge with the prongs
of its 1.8 mm gauge blade under the vibrating presser (Fig. 39), press the upper presser bar
bracket against the rollerat the topof the two-armed lever, and tighten binding screw a securely.
As you do this, note the following:
The inner and outer presser bars are connected by various driving elements. Tightening
binding screw a on the slotted presser bar bracket tends to cause the inner presser bar to
rotate slightly so that the driving elements become wedged. To avoid this, exert a slight counter-
pressure against the driving elements and the vibrating presser while tightening binding
screw a. Then check whether the vibrating presser moves freely. If it does not, readjust while
pushing it in the opposite direction slightly.
After this
adjustment, tighten binding screw K on the driving lever securely (Fig. 40).

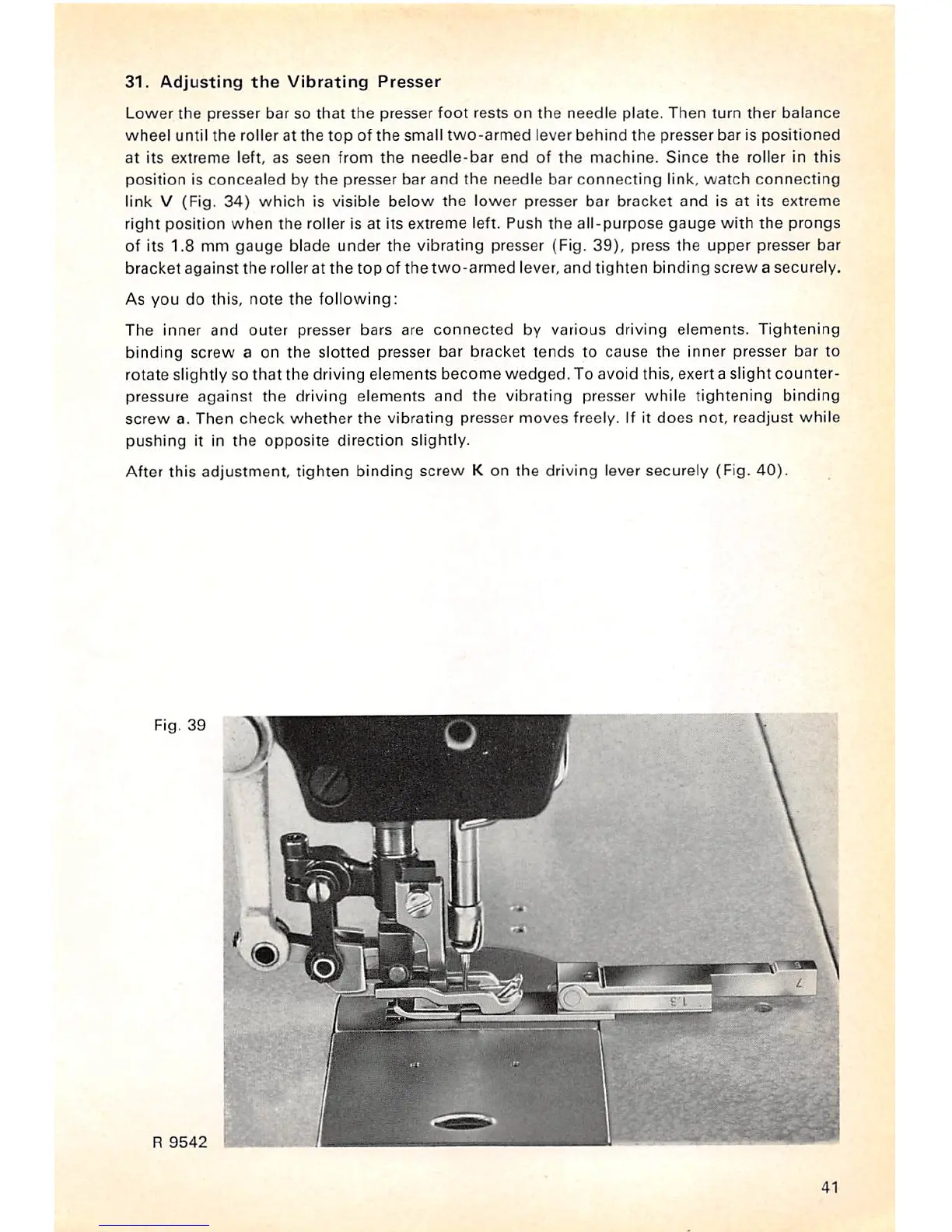

Fig. 39
f
R 9542
41
