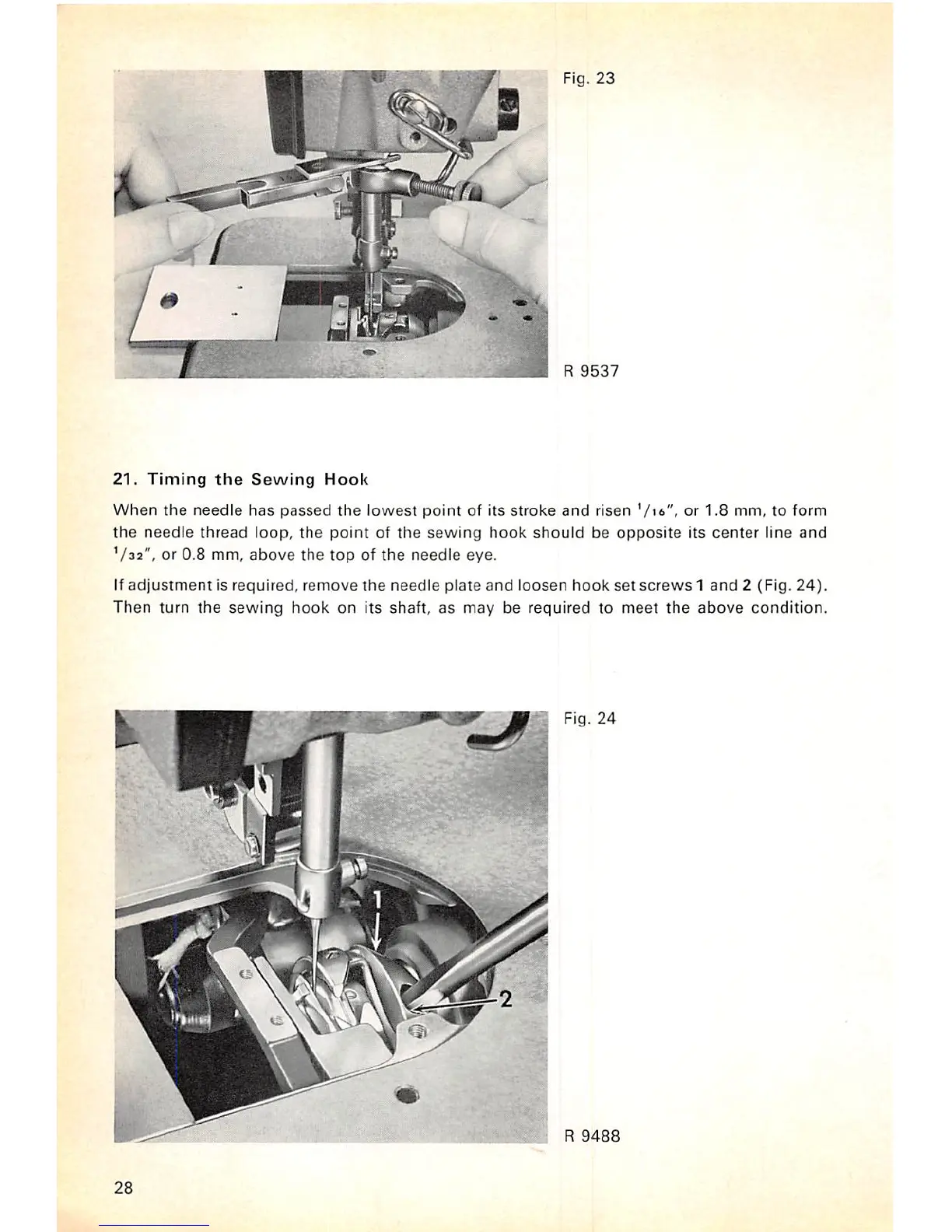

Fig. 23
R 9537
21. Timing the Sewing Hook
When the needle has passed the lowest point of its stroke and risen V<6", or 1.8 mm, to form
the needle thread loop, the point of the sewing hook should be opposite its center line and
Vaa", or 0.8 mm, above the top of the needle eye.
If adjustment is required, remove the needle plate and loosen hook set screws 1 and 2 (Fig. 24).
Then turn the sewing hook on its shaft, as may be required to meet the above condition.
Fig. 24
R 9488
28
