At the same time, set the hook as close to the needle as possible, the proper clearance between
both parts being .004", or 0.1 mm.
When adjusting the lateral position of the sewing hook, for example, after inserting a new
hook, take care that the hub of the balancing collar does not bear against oil retainer ring LR
(Fig. 25) which serves to conduct oil to the sewing hook and was introduced some time ago.
Emerging from oil flow regulating valve R (Fig. 24), the oil flows
through copper tube 1 into
oil retainer ring LR which is
capped over the hook shaft bearing bushing and has a small
borehole in its hub from which oil drips into the oil groove in the balancing collar.

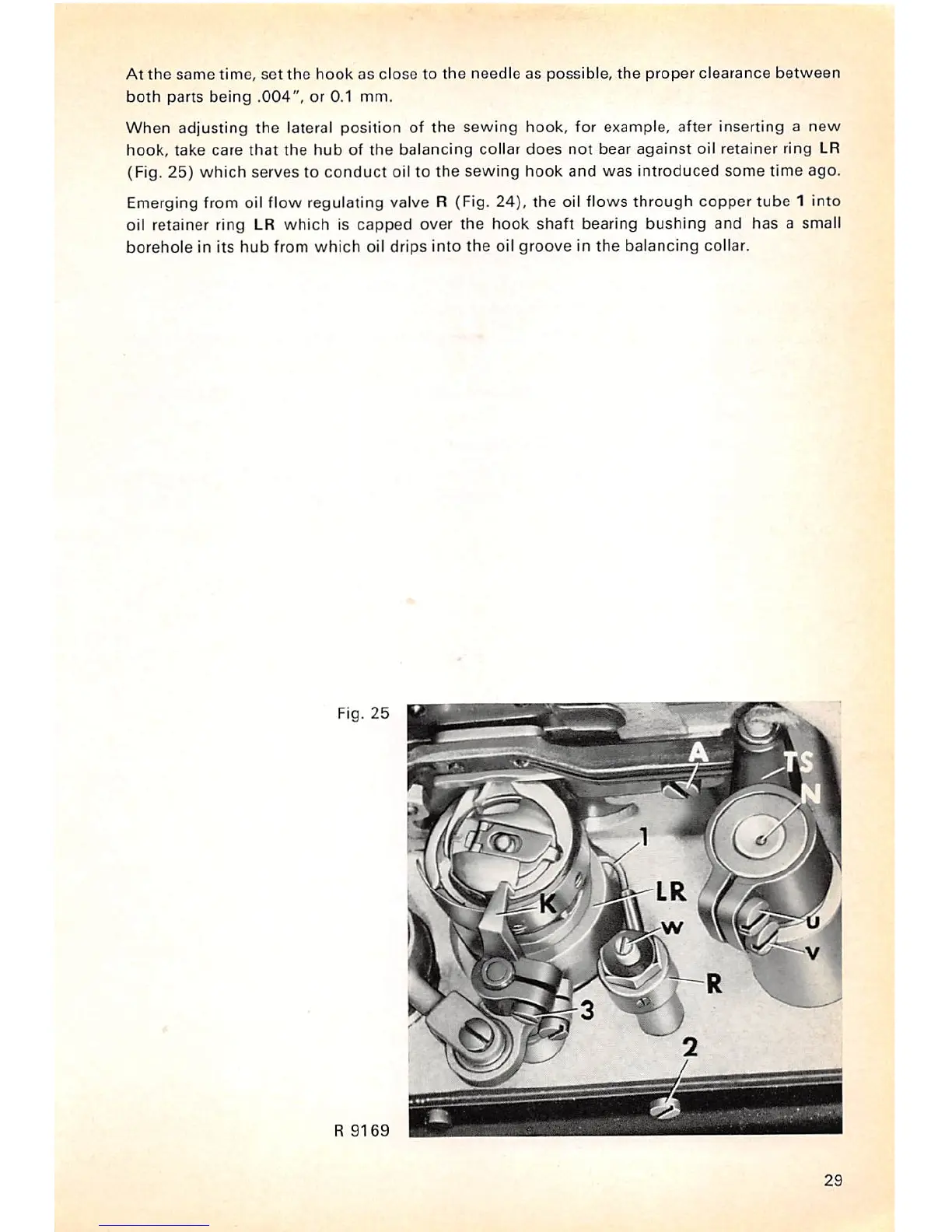

Fig. 25
O
R 9169
29
