N W

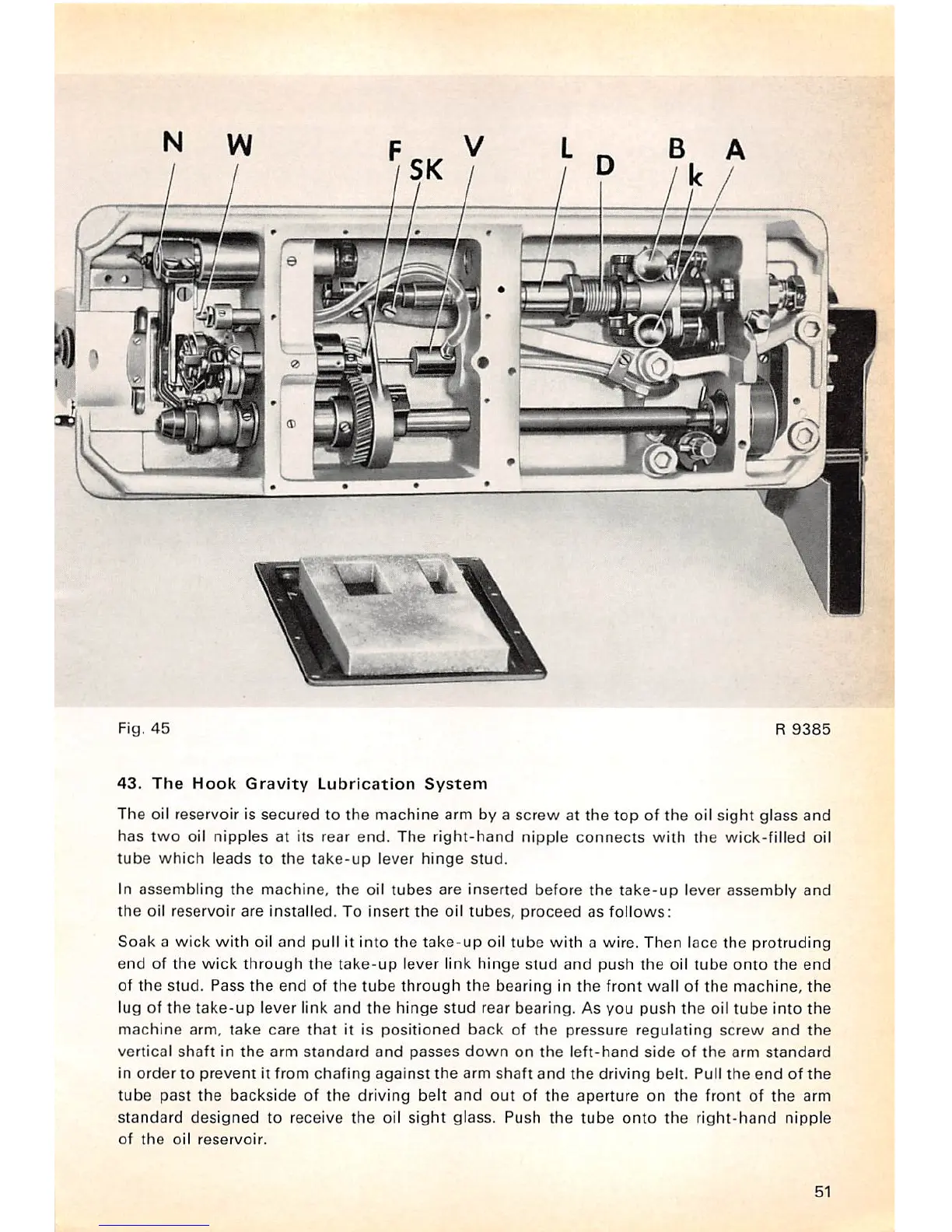

Fig,
45
R
9385
43.
The
Hook
Gravity
Lubrication
System
The oil reservoir is
secured
to the machine arm by a
screw
at
the
top
of
the
oil
sight
glass
and
has
two
oil
nipples
at Its rear
end.
The
right-hand
nipple
connects
with
the
wick-filled oil
tube
which
leads
to
the
take-up
lever
hinge
stud.
In
assembling
the
machine,
the
oil
tubes
are
inserted
before
the
take-up
lever
assembly
and
the
oil
reservoir
are
installed.
To
insert
the
oil
tubes,
proceed
as
follows:
Soak
a
wick
with
oil
and
pull it into
the
take-up
oil
tube
with
a wire.
Then
lace
the
protruding
end
of
the
wick
through
the
take-up
lever
link
hinge
stud
and
push
the
oil
tube
onto
the
end
of
the
stud.
Pass
the
end
of
the
tube
through
the
bearing
in
the
front
wall
of
the
machine,
the
lug of
the
take-up
lever link
and
the
hinge
stud
rear
bearing.
As you
push
the
oil
tube
into
the
machine
arm,
take
care
that
it is
positioned
back
of
the
pressure
regulating
screw
and
the
vertical
shaft
in
the
arm
standard
and
passes
down
on
the
left-hand
side
of
the
arm
standard
in
order
to
prevent
it from
chafing
against
the
arm
shaft
and
the
driving
belt.
Pull
the
end
of
the
tube
past
the
backside
of
the
driving
belt
and
out
of
the
aperture
on
the
front
of
the
arm
standard
designed
to receive
the
oil
sight
glass.
Push
the
tube
onto
the
right-hand
nipple
of
the
oil
reservoir.
51
