Pfaff 467 User Manual

Model
Needle
Hole Die.
in mm
Max.
Stitch
Length
in
s.p.m.
Needle
Size in
'/loo mm
Machine
Speed
In r.p.m.
Motor
Order No.
Pulley
DIa.
In mm
Needle
System
A (1.0)
1.0 5)4 60 4,200
16-437 080-55 95 134
A Standard
1.2 5)4 70
4,200 16-437 080-55
95
134
A (1.4) 1.4
5)4 80 4,200
16-437 080-55 95 134
B Standard
1.6
5)4
90-100
4,200 16-437 080-55
95
134
B (1.8)
1.8 S'A 100:110 4,200
16-437 080-55 95 134

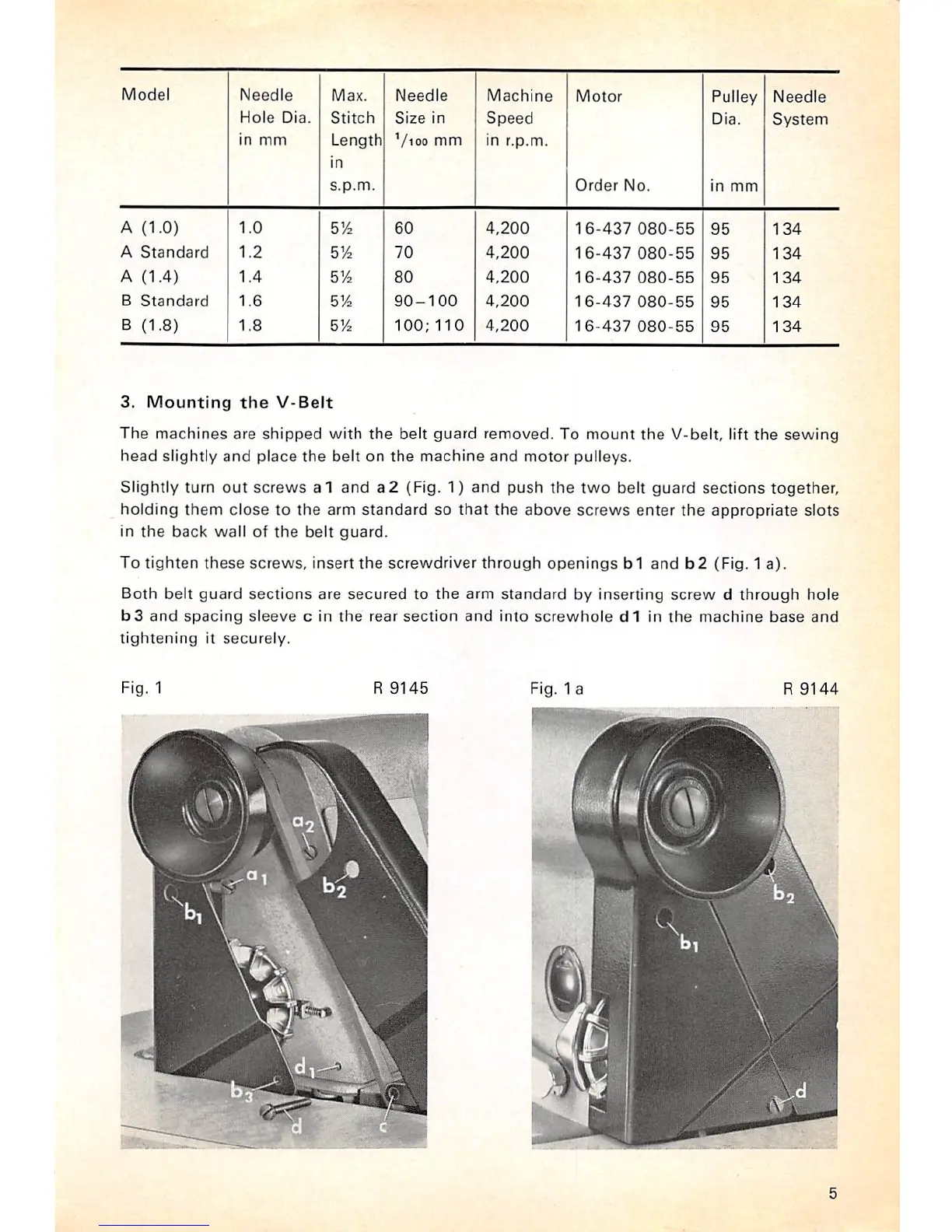

3. Mounting the V-Belt
The machines are shipped with the belt guard removed. To mount the V-belt, lift the sewing
head slightly and place the belt on the machine and motor pulleys.
Slightly turn out screws a1 and a2 (Fig. 1) and push the two belt guard sections together,
holding them close to the arm standard so that the above screws enter the appropriate slots
In the back wall of the belt guard.
To tighten these screws, insert the screwdriver through openings b1 and b2 (Fig. 1 a).
Both belt guard sections are secured to the arm standard by Inserting screw d through hole
b3 and spacing sleeve c In the rear section and Into screwhole d1 In the machine base and
tightening It securely.
Fig. 1
R 9145 Fig. 1 a R 9144
