Pfaff 9063 - Fitting the Oil Pan

Mounting and commissioning the machine
8 - 2
76
-
063

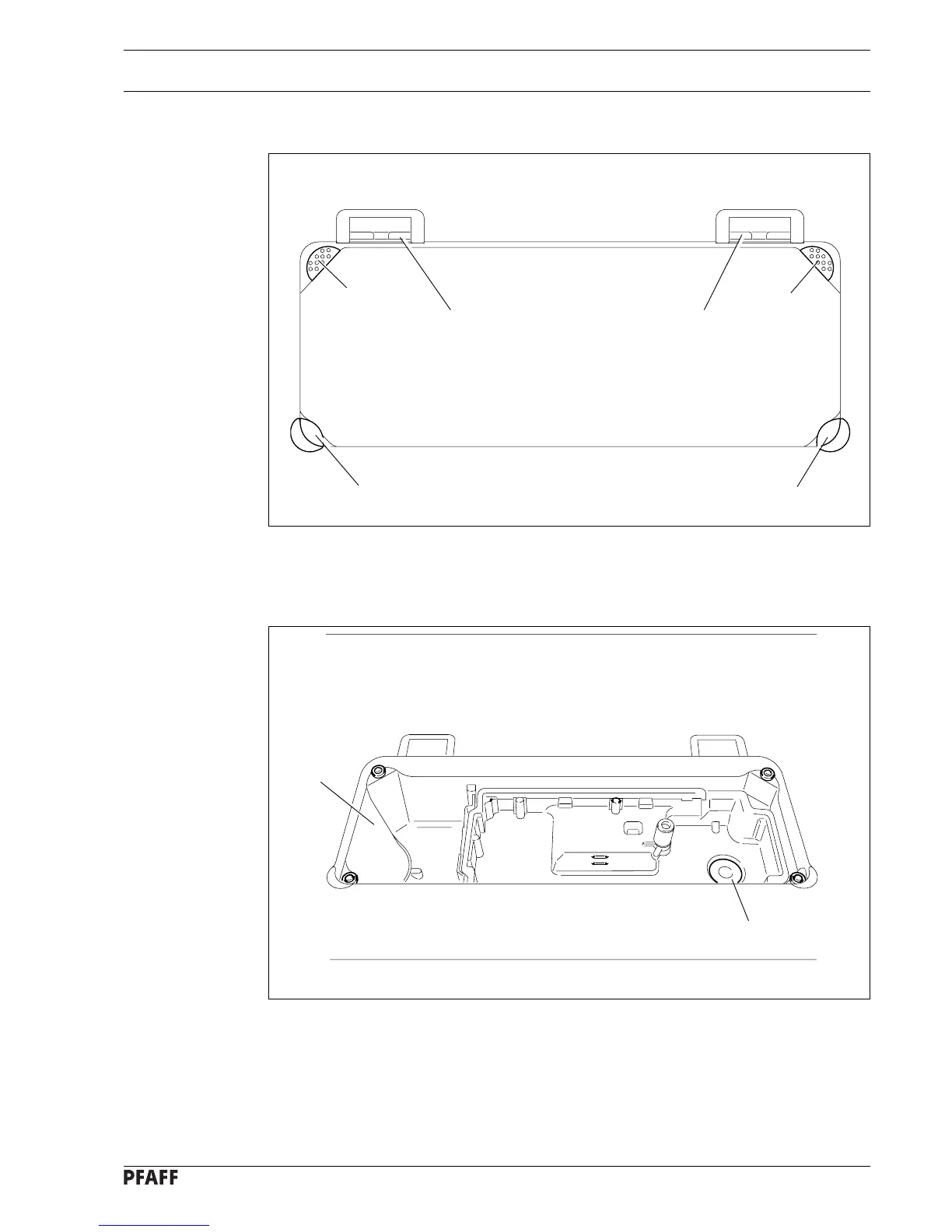

8.01.02 Fitting the oil pan
Fig. 8 - 02
1
● Insert rubber pads 1 and 2 and fasten them with nails.
● Attach rubber pad 3 with a suitable adhesive.
1
3
3
● Insert oil pan 4 in the table top cutout.
● Place magnet 5 in the corresponding recess of the oil pan.
Fig. 8 - 03
76-008
4
5
2
2
