Pfaff 9063 - Mounting the Thread Winder

Mounting and commissioning the machine
8 - 5
76
-
015
8.01.06 Mounting the thread winder

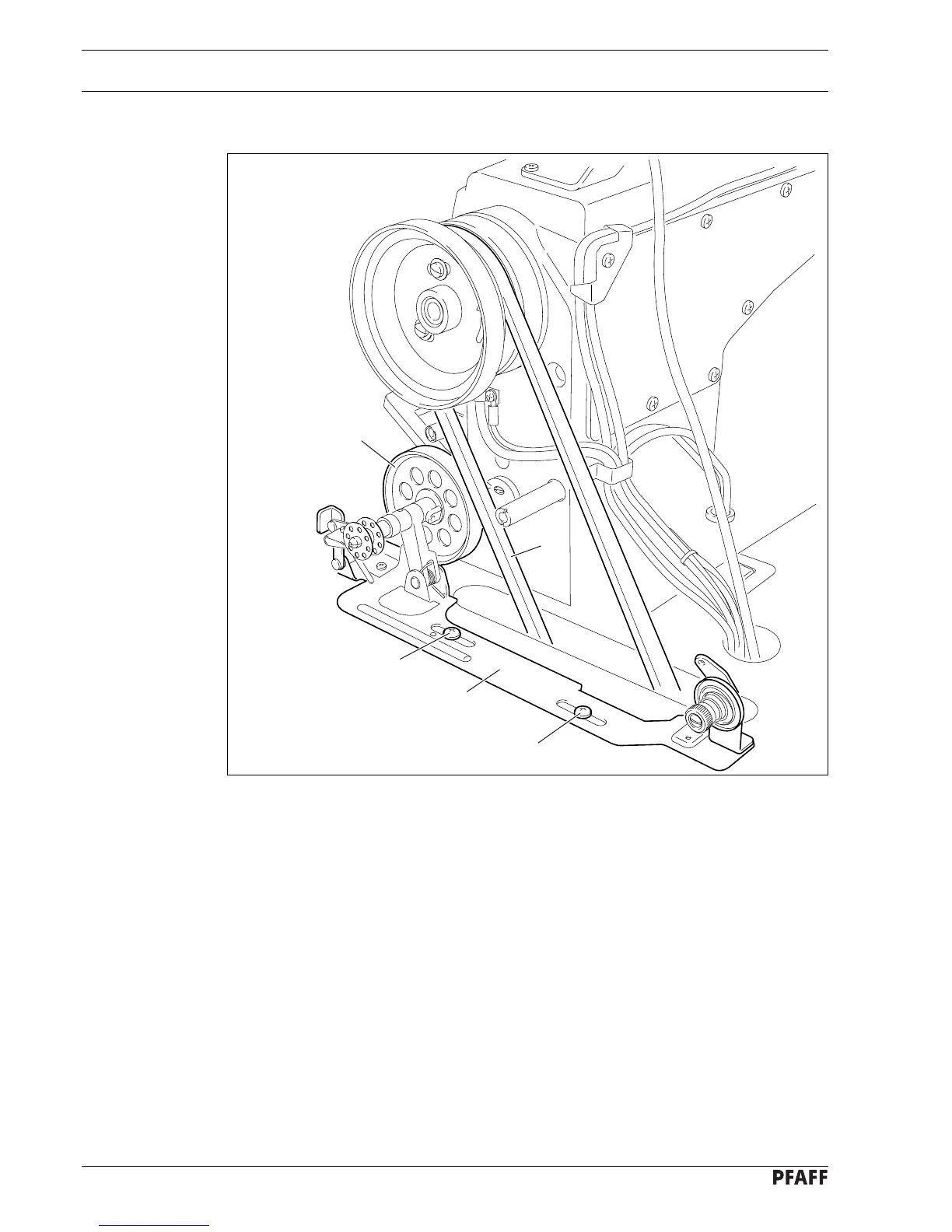

Fig. 8 - 07
● Fasten thread winder 1 to the table top with screws 2, so that when the thread winder is
switched on, friction wheel 3 is driven reliably by V-belt 4.
1
2
2
3
4
