Adjustment
11 - 15
76-042
11
.07

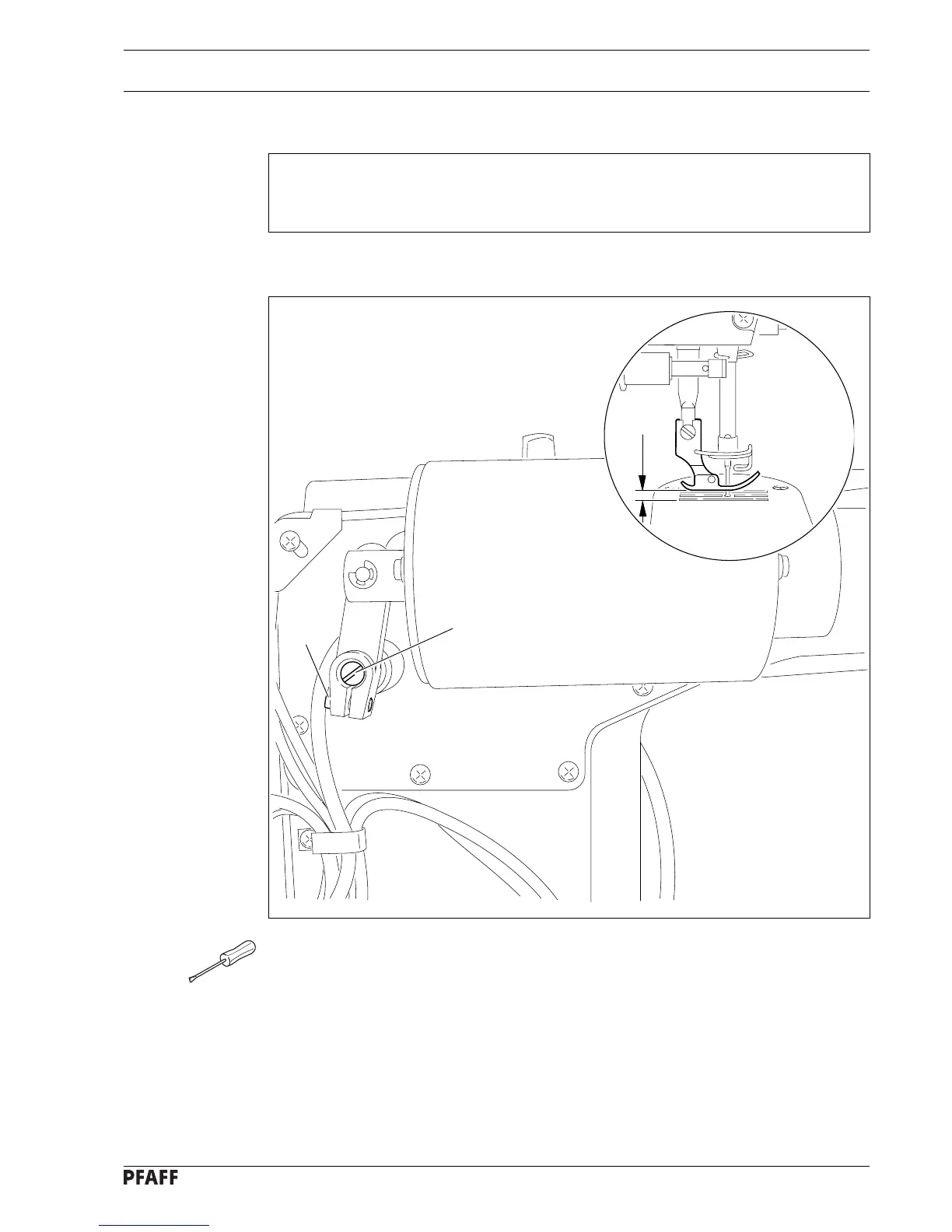

Adjusting the automatic presser foot lift ā910/93
Requirement
When the automatic presser foot lift is operated, the presser foot should be
9 mm
above
the needle plate.
ā
Adjust shaft
1
(screw
2
) in accordance with the
requirement.
Fig. 11 - 14
1
2
76-053
9 mm
48
50
Table of Contents
Instruction Manual
1
Table of Contents
3
Contents
4
Safety
5
Directives
5
General Notes on Safety
5
Safety Symbols
6
Important Points for the User
6
Operating Personnel
7
Danger
8
Proper Use
9
Specifications
10
Pfaff 9063
10
Models and Subclasses
10
Disposal of Machine
11
Transport, Packaging and Storage
12
Transport to the Customer's Premises
12
Transport Within the Customer's Premises
12
Disposal of the Packaging
12
Storage
12
Explanation of the Symbols
13
Controls
14
On/Off Switch
14
Pedal
14
Lever for Raising the Presser Foot
15
Knee Lever
15
Stitch Length Adjustment Wheel
16
Key on Machine Head
17
Switch for Thread Wiper -909/93
17
Mounting and Commissioning the Machine
18
Mounting
18
Adjusting the Table-Top Height
18
Fitting the Oil Pan
19
Mounting the Sewing Head
20
Mounting the Balance Wheel
20
Tightening the V-Belt
21
Mounting the Thread Winder
22
Mounting the Top V-Belt Guard
23
Mounting the Bottom V-Belt Guard
24
Fitting the Thread Guide
24
Mounting the Spool Holder
25
Connecting the Plug Connections and Earth Cable
25
Commissioning
26
Switching the Machine On/Off
26
Table Top Cutout
27
Preparation
28
Inserting the Needle
28
Winding the Bobbin Thread / Adjusting the Preliminary Thread Tension
29
Removing/Inserting the Bobbin Case
30
Inserting the Bobbin Case / Adjusting the Bobbin Thread Tension
30
Threading the Needle Thread / Adjusting the Needle Thread Tension
31
Care and Maintenance
32
Cleaning the Machine
32
Checking the Oil Level / Filling in Oil
33
Adjusting the Lubrication
34
Lubricating the Needle Head Parts
34
Hook Lubrication
34
Adjustment
35
Notes on Adjustment
35
Tools, Gauges and Other Accessories
35
Abbreviations
35
Adjusting the Basic Machine
36
Pre-Adjusting the Needle Height
36
Setting the Bottom Feed Dog at Its Neutral Position
37
Bottom Feed Dog Motion
38
Bottom Feed Dog Position
39
Needle Rise, Hook Clearance, Needle Height and Bobbin Case Position Finger
40
Thread Check Spring and Thread Regulator
41
Knee Lever Stop
42
Presser Foot Pressure
43
Adjusting the Thread Trimmer -900/93
44
Adjusting the Synchronizer
44
Adjusting the Control Cam
45
Position of the Stationary Knife
46
Needle Thread Tension Release
47
Adjusting the Thread Wiper -909/93
48
Adjusting the Automatic Presser Foot Lift -910/93
49
Adjusting the Backtacking Mechanism -911/93
50
Wearing Parts
51
