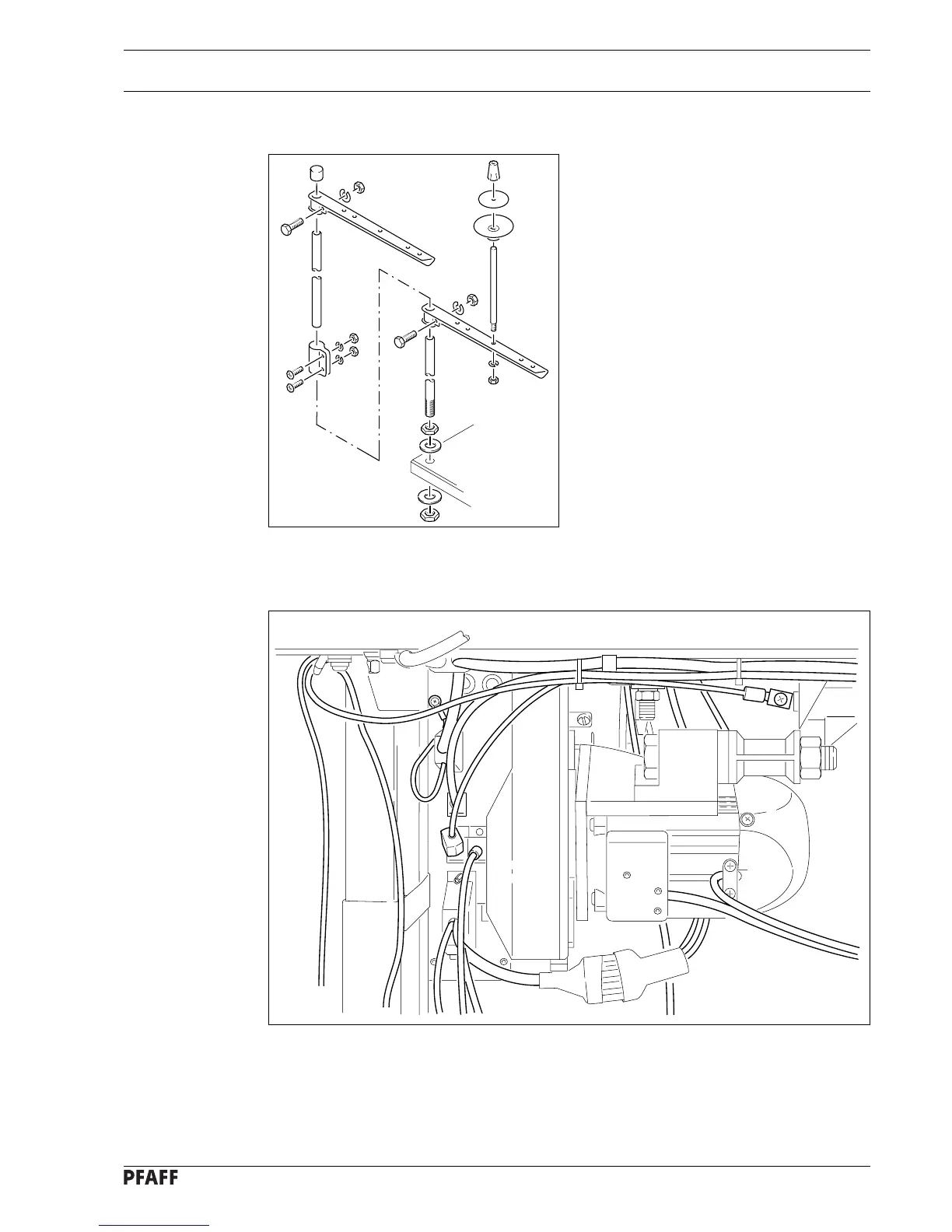

8.01.10 Mounting the spool holder
● Mount the spool holder as shown in
Fig. 8-11.
● Insert the spool holder into the hole in the
table top and fasten it with the nuts
enclosed.
Fig. 8 - 11
8.01.11 Connecting the plug connections and earth cable
Fig. 8 - 12
● Insert all the plugs coming from the machine to the control box as described in the Motor
Service Manual (Fig. 8-12 shows the Quick-Motor control box)
● Screw the earth cable from the sewing machine, motor and, if necessary, the control box
to the stand.
