Pfaff 9063 - Adjusting Thread Trimmer Features

Adjustment
11 - 10
76
-
052
Fig. 11 - 09
11.05 Adjusting the thread trimmer –900/93

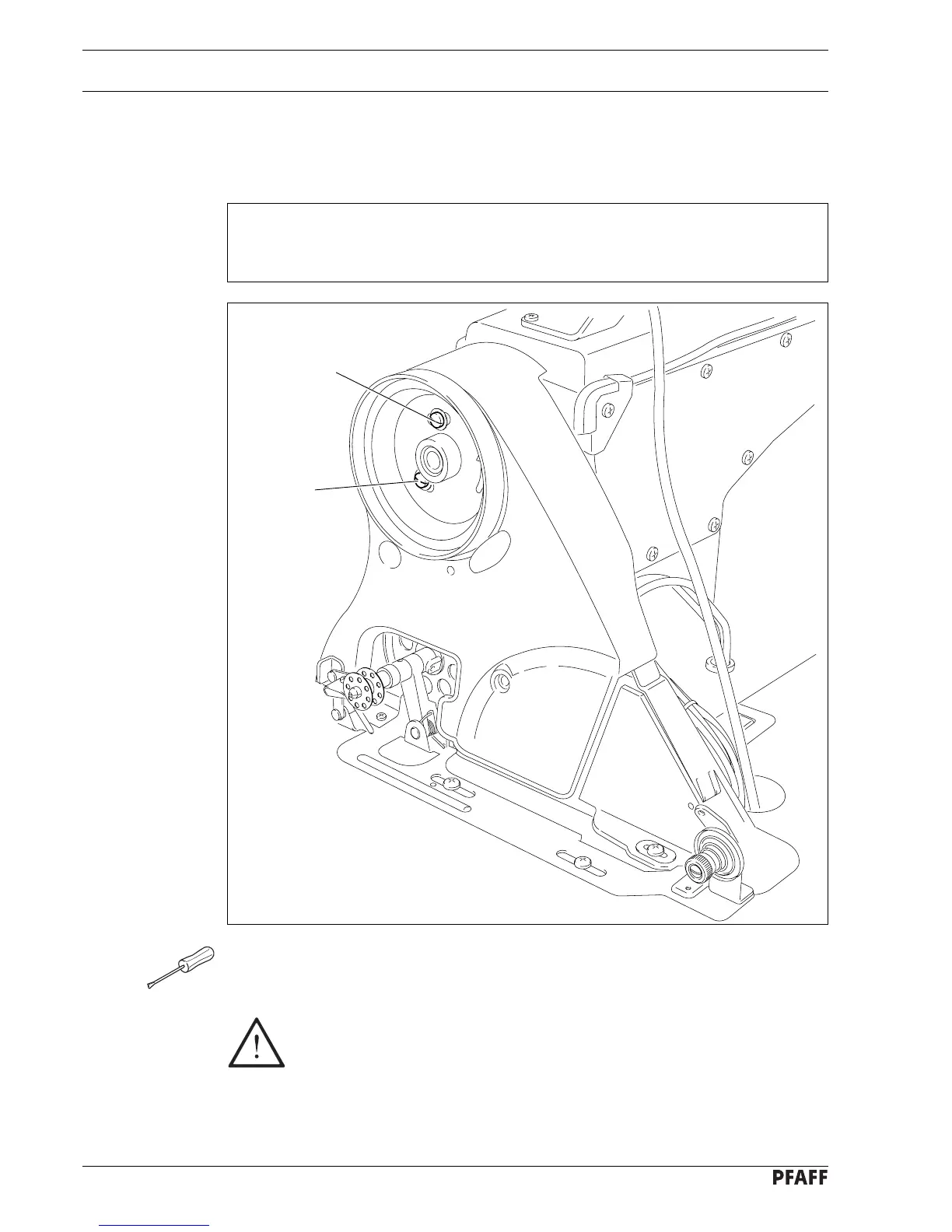

11.05.01 Adjusting the synchronizer
Requirement
1. When the machine has stopped it should be positioned in b.d.c. needle bar.
2. After thread trimming the machine should be positioned in t.d.c. take-up lever.
● Slightly loosen screw 1 and adjust it in accordance with requirement 1.
● Slightly loosen screw 2 and adjust it in accordance with requirement 2.
Only loosen screws 1 and 2, do not remove them completely!
