Adjustment
11 - 5
76
-
028
11.04.04 Bottom feed dog position
Requirement
When the stitch length is set at "0" and the bottom feed dog 5 is at t.d.c., it should
1. Be positioned in the centre of the needle plate cutout in the feeding direction.
2. Its teeth should be 0.75 – 0.85 mm parallel over the needle plate.

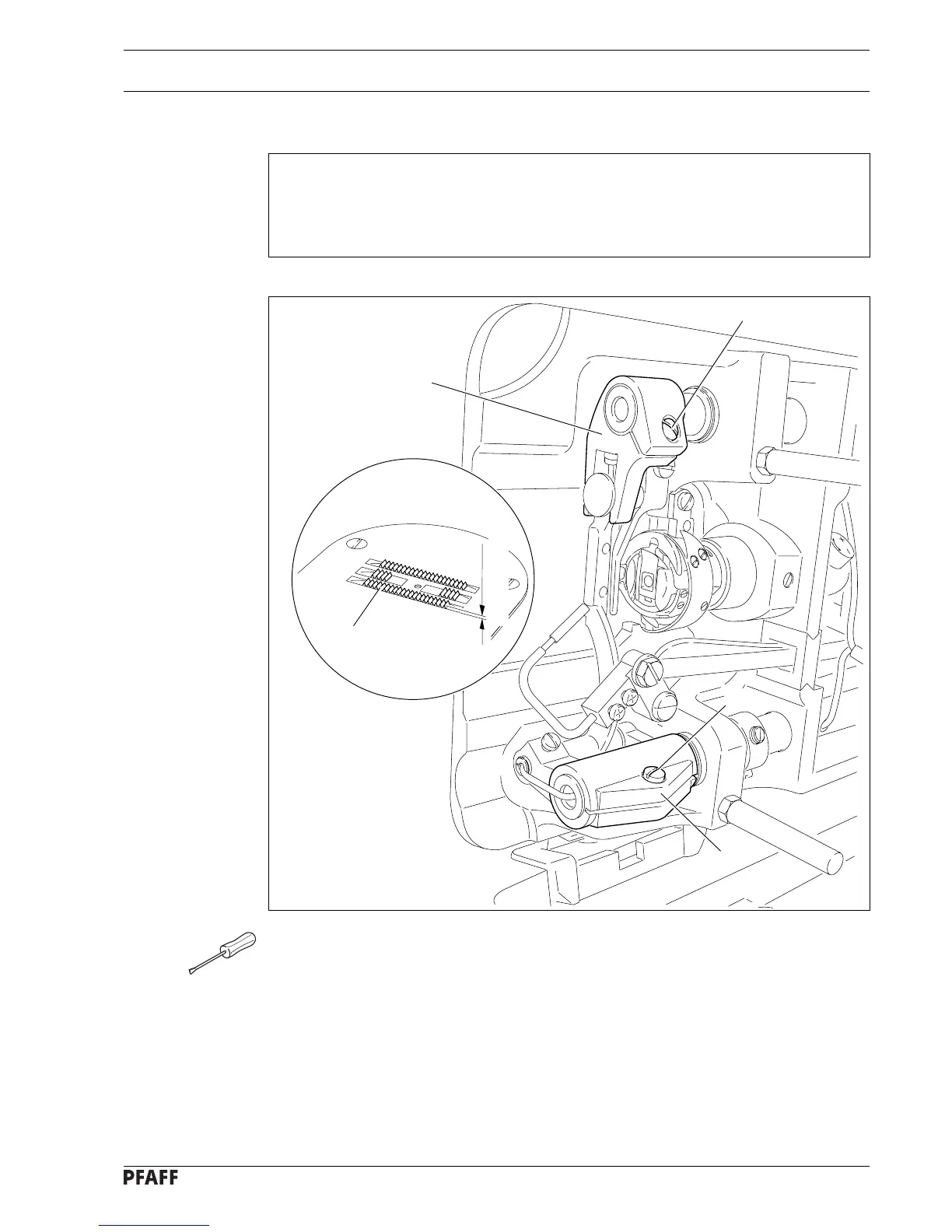

Fig. 11 - 04
● Shift or turn crank 1 (screw 2) in accordance with requirement 1.
● Turn crank 3 (screw 4) in accordance with requirement 2.
4
3
2
1
76-054
5
0,75 - 0,85 mm
