16. Threading device
Check
1. Insert a new # 70 needle.
2. Bring the needle bar to its highest turning position.

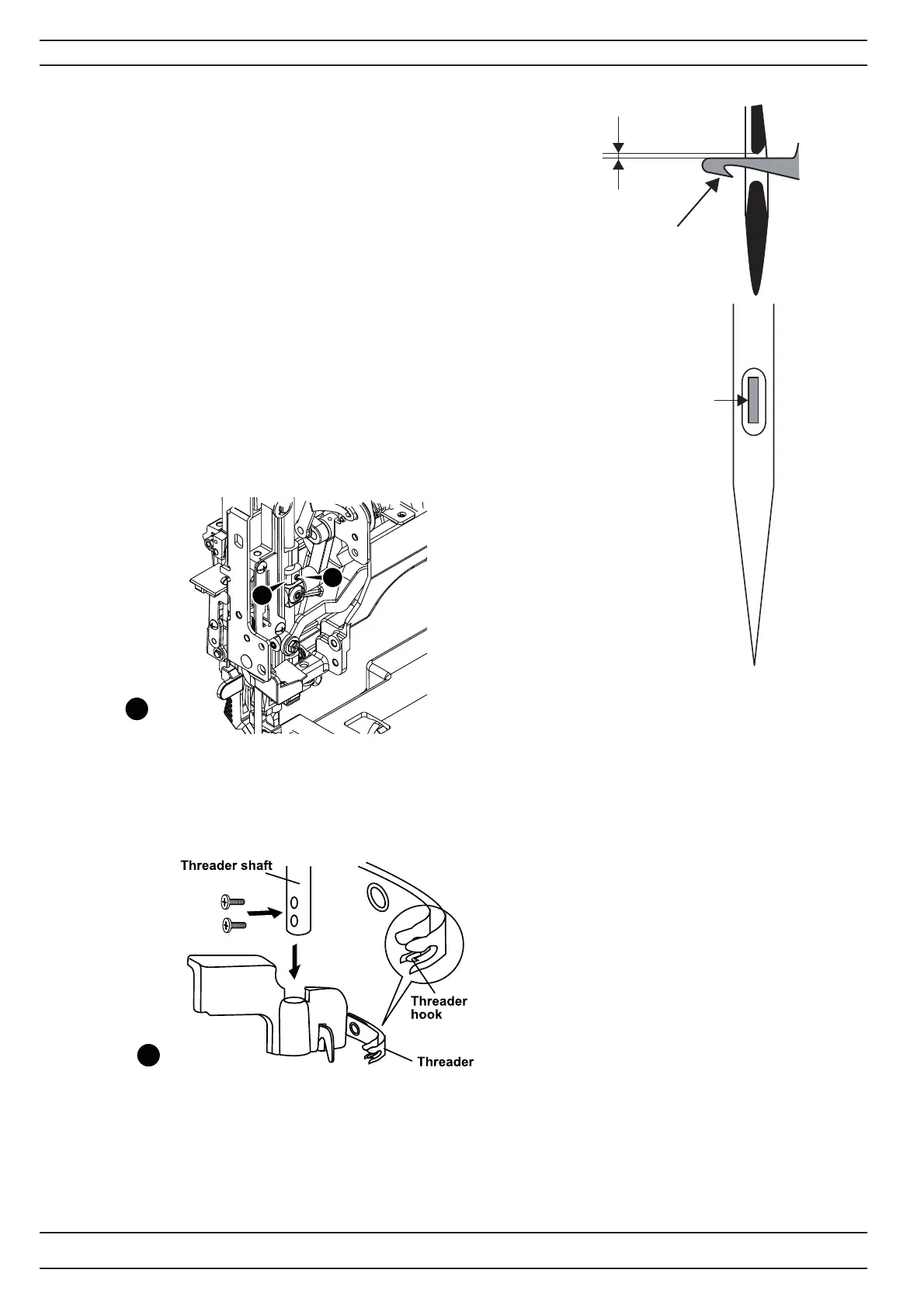

3. The threader hook (d) shall go smoothly into the needle
eye.
See illustrations.
Adjustment height - stop
1. Remove the face plate
2. Turn on machine and press the Needle up/down button to set the needle bar at
its highest position.
3. Loosen screw (b) of the threader stopper (a).
- - Move the stopper (a) upward and the threader hook will become higher.
- Move the stopper (a) downward and the threader hook will become lower.
Adjust the stopper so the threader hook (d) goes smoothly into the needle eye.
Fasten the screw (b).
Needle threader hook replacement.
Re move both screws on back of the unit and replace device. (3).
Settings
d
0.1 mm
d
2
a
b
3
