22. Setting IDT foot sideways
Check:

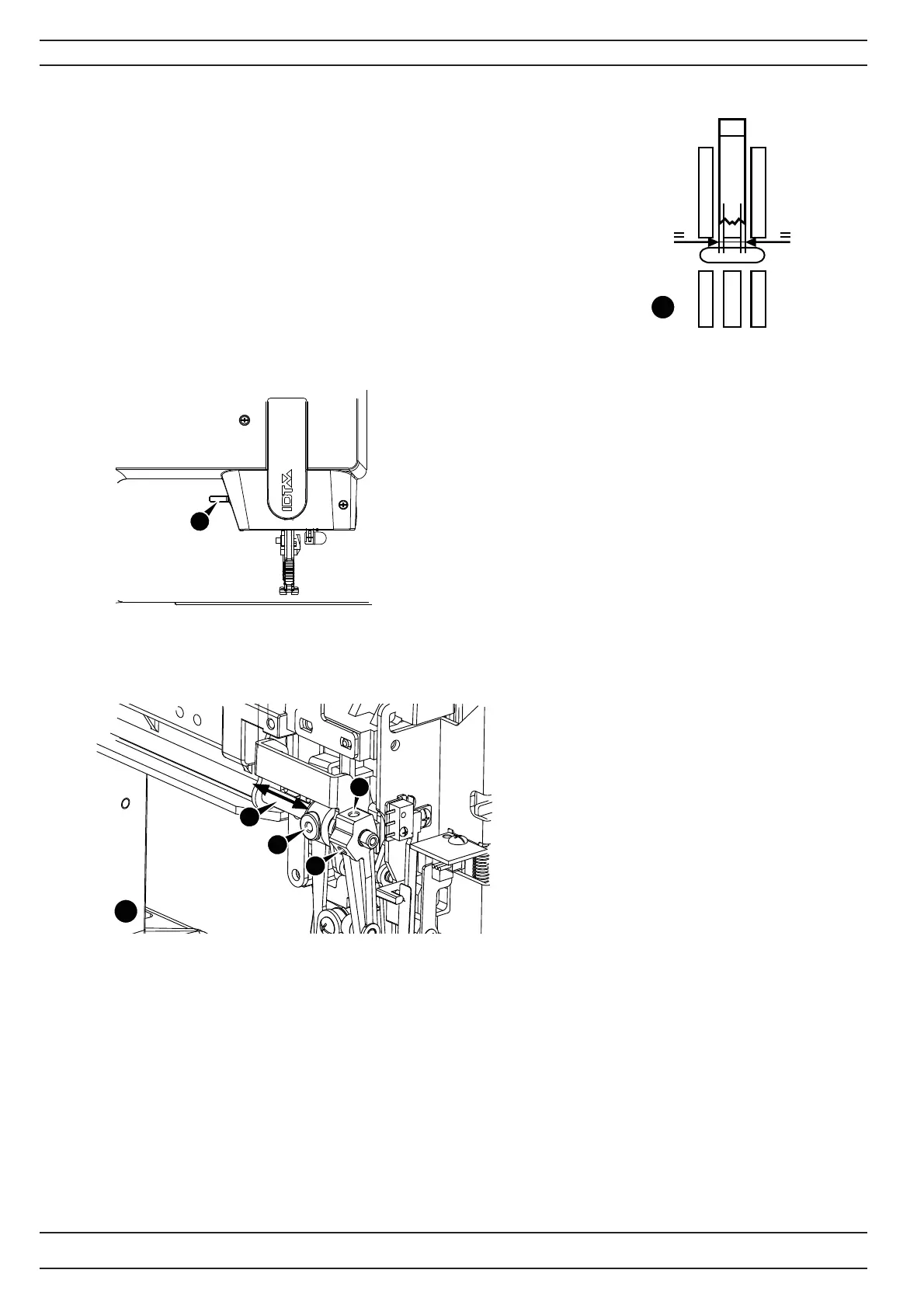

The front edge of the IDT foot must be in the middle of the center feed dog. (3)
Adjustment:
1. Raise the presser foot lever (a) and engage IDT.
2. Remove the presser foot and face plate.
3. Set the feed dog fl ush with top surface of the needle plate.
4. Loosen the screws (b, c, d) on the feed crank.
5. Move feed shaft (e) to the left or right until the IDT front edge is in the middle of the center feed dog.
6. Tighten the screws (b, c, d).
a
3
d
2
c
b
e
Settings
