Removing the covers
NOTE:
Before adjusting or repairing the machine, make sure to:
Disconnect the machine’s main plug.
Remove needle and presser foot.
Remove detachable work support.

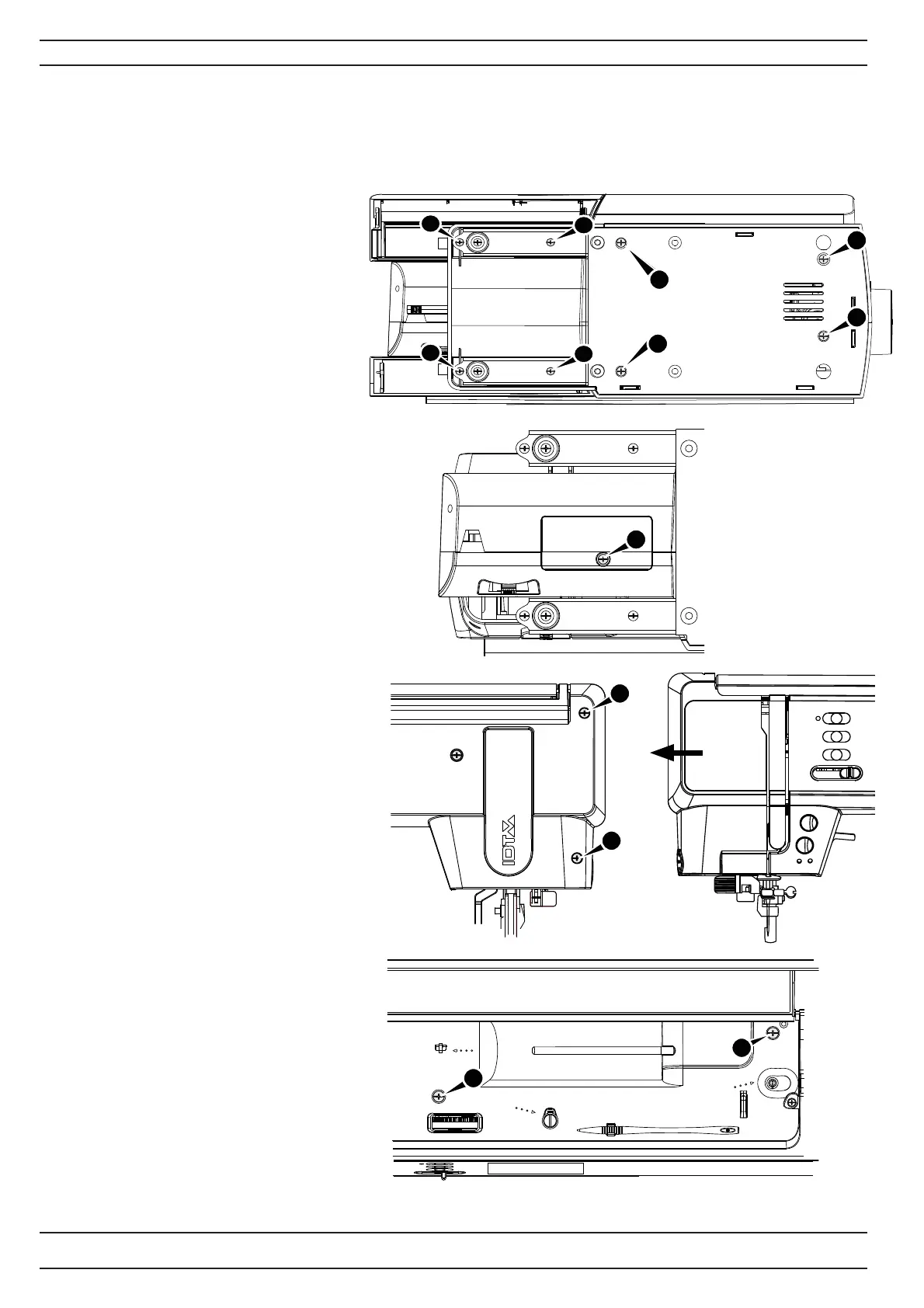

Base cover
1. Lay down machine.
2. Remove 4 screws (a, b, c, d).
3. Remove base cover.
Base plate extension cover
1. Remove 4 screws (e, f, g, h)
2. Remove the base plate extension cover.
Free arm cover
1. Remove the screw (i)
2. Remove the free arm cover.
Face plate
1. Stand up the machine
2. From the back remove 2 screws (j, k).
3. From the front remove the face plate.
Top cover
1. Remove 2 screws (l, m)
2. To remove the top cover lift it upwards.
Covers
a
c
b
d
f
h
g
e
i
j
k
m
l
