Settings
18. Height of presser bar’s guide piece
Check:
1. Raise the presser foot to second position.
2. Set the needle at the highest position.

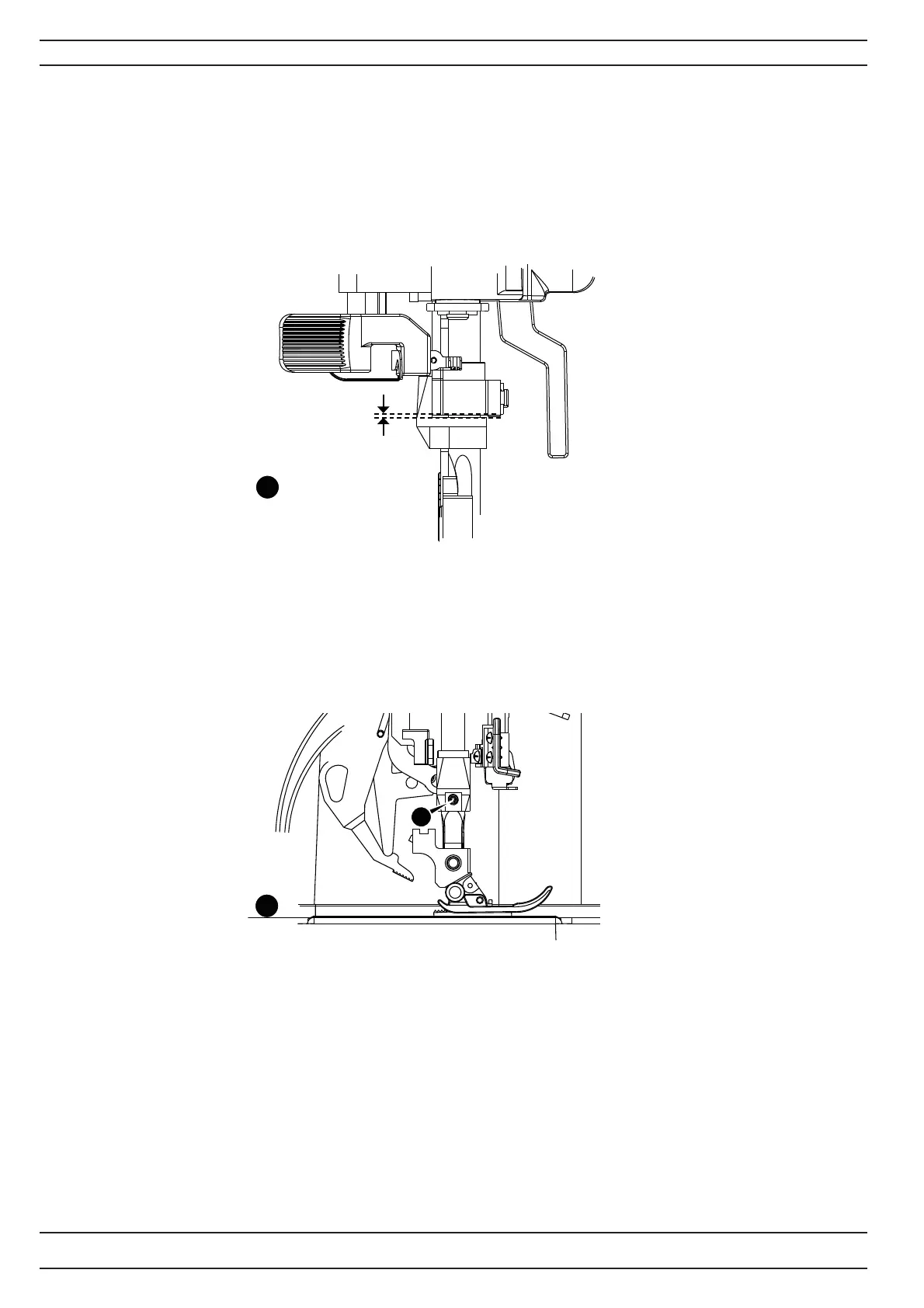

The gap between presser bar and press bar ring should be around 0.5 mm. (1)
Adjustment:
1. Loosen up the screw (a)
2. Set the Guide piece so its 0.5 mm between presser bar ring and guide peice
3. Tighten screw (a).
2
a
1
0.5 mm
