Covers
Front cover

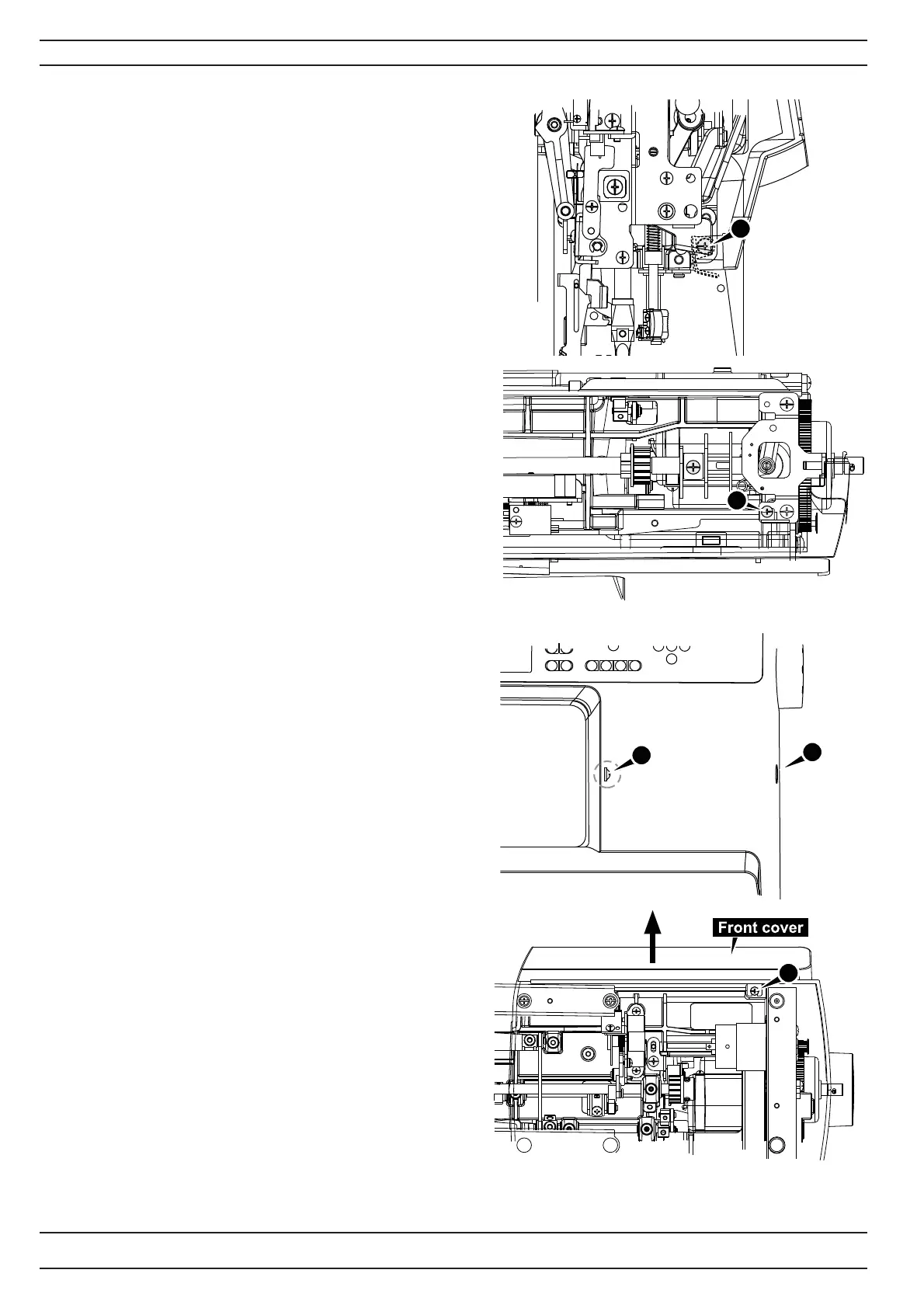

1. From the left side of the machine loosen the screw
(s).
2. From the top, loosen up the screw (t).
3. Remove screw cap (x)
4. To locate the screw (u) use an electric torch (fl ash
light) since its positioned inside the machine.
5. Loosen the screw (u).
6. Lay the machine down
7. Loosen the screw (v) from on the bottom.
8. Remove front cover by pulling it towards you.
9. Remove the front covercarefully, then disconnect
cable between main PC baord and the front cover.
s
t
u
x
v
