Setting for T9 key (paging) is on mode 1 (Fig. 7.19): used to select the
display program number, display seam section number and the seam section stitches:
- A+ / A- Set the program number
- B+ / B- Set the seam section number
- D+ / D- Set the seam section stitches
Function of the programming key in "Parameter programming" mode (Fig. 7.20)
T11 key (PM) unlit, T10 key (TE) lit.
-A+ / A-Change the hundreds digit of the parameter number
-B+ / B-Change the parameter number in the selected hundreds range
- C+ / C- Program the parameter value of the set parameter number
- D+ / D- Program the parameter value of the set parameter number

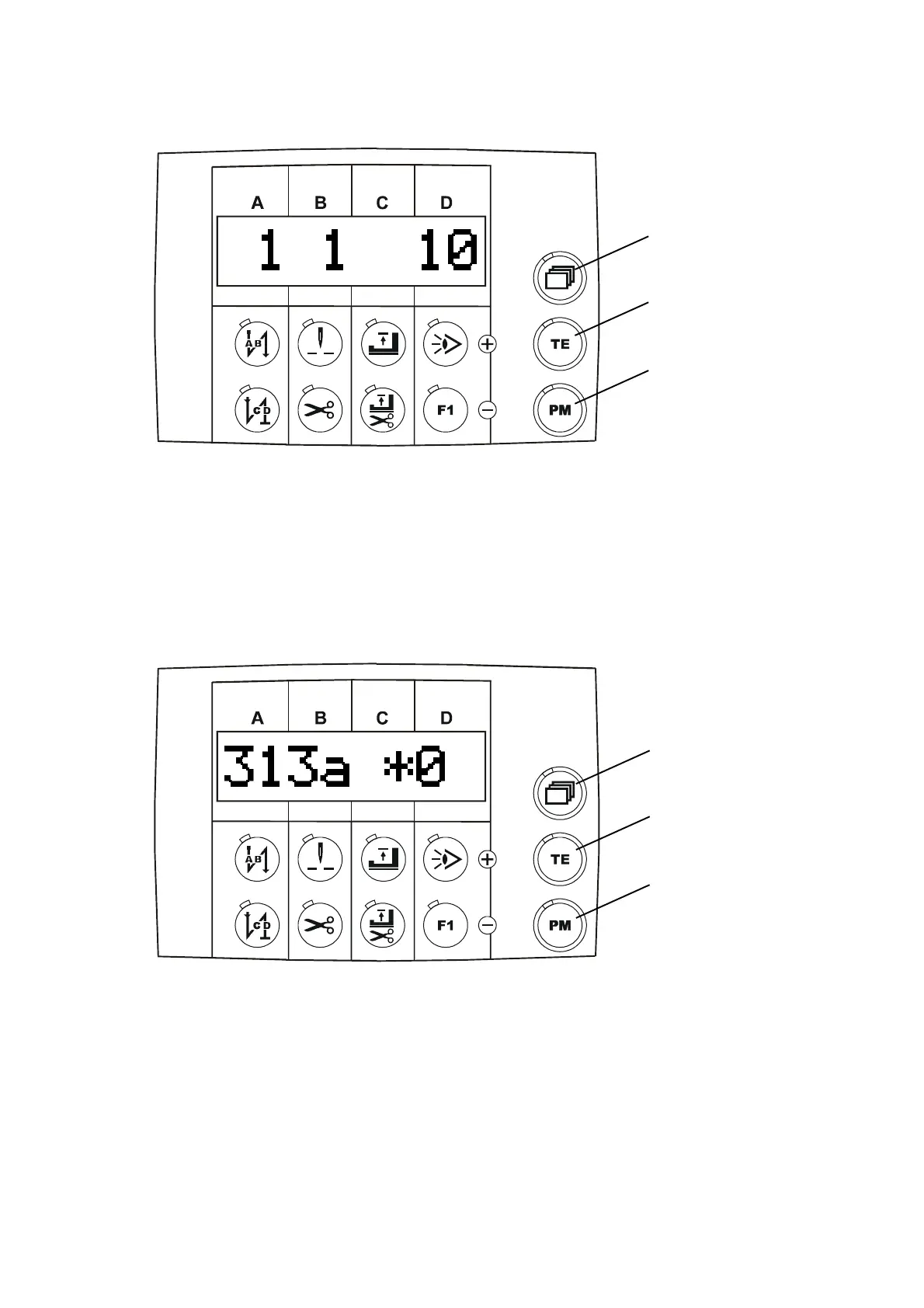

Fig. 7.19
Paging key
TE key
(Enter mode)
PM key
(Program mode)
Fig. 7.20
Paging key
TE key
(Enter mode)
PM key
(Program mode)
